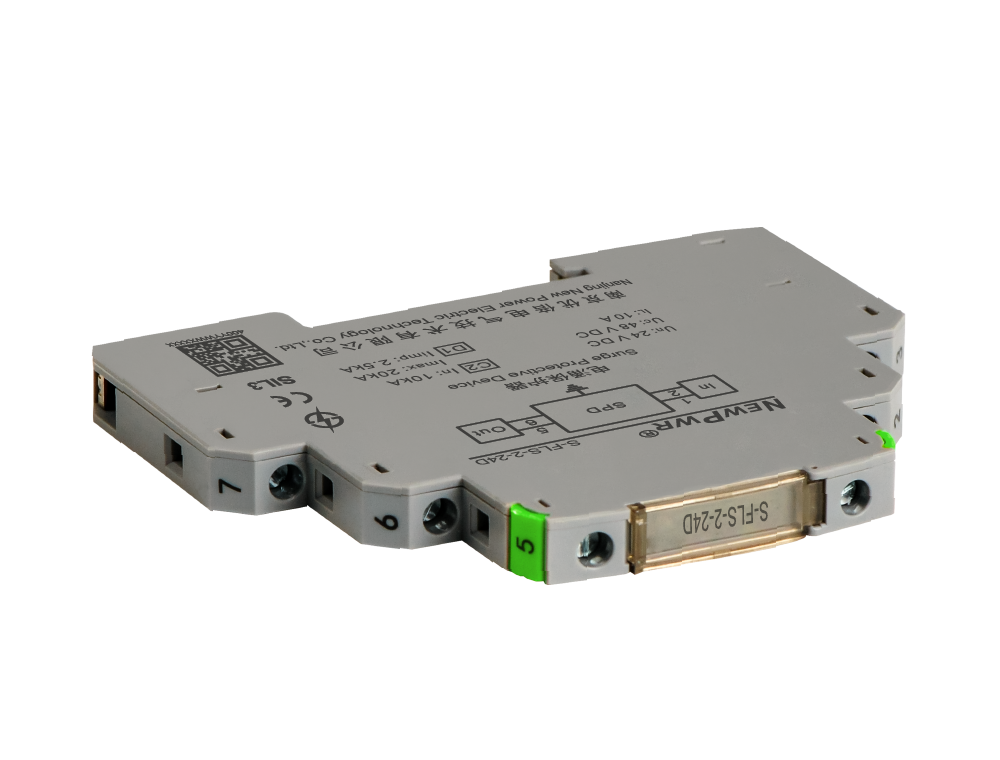

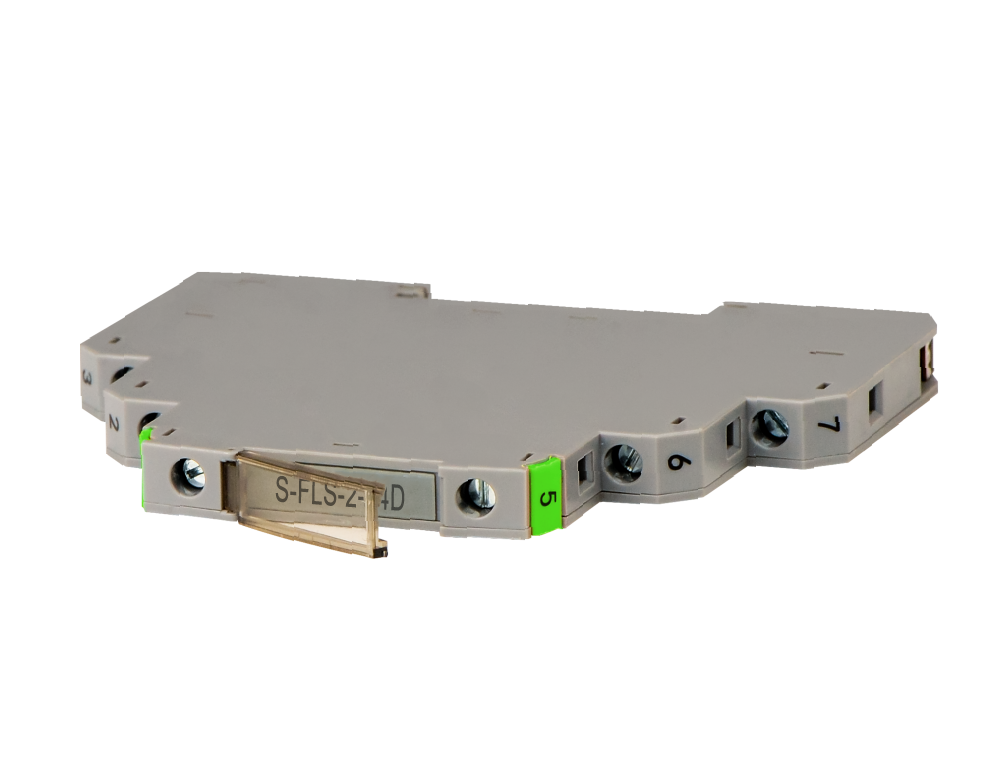

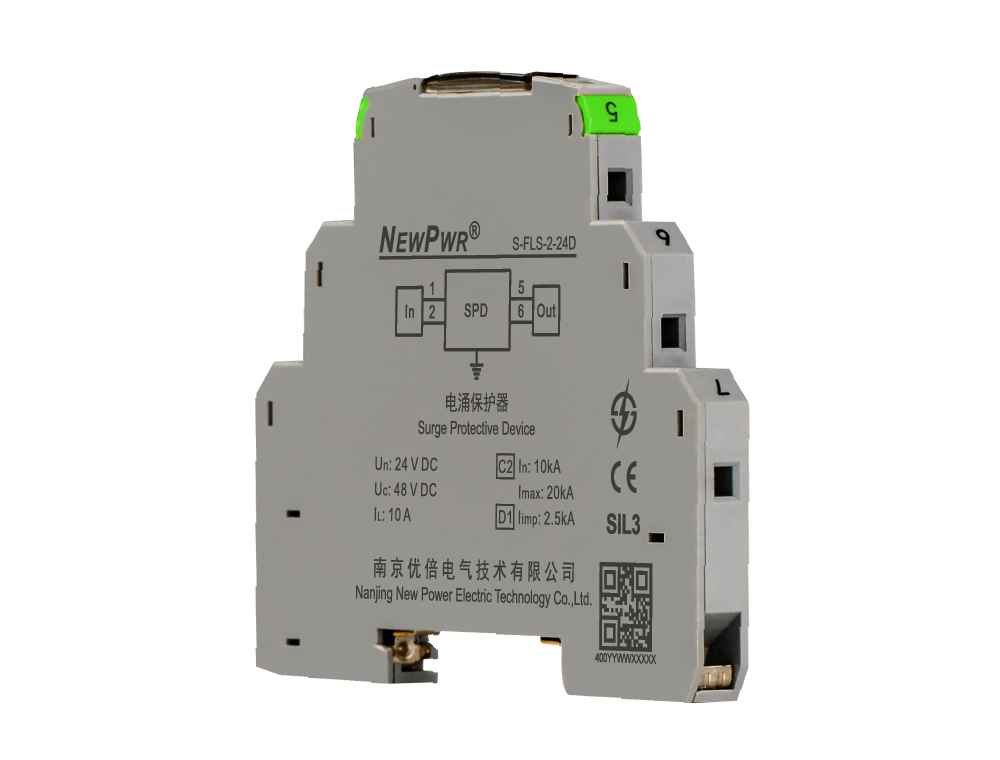

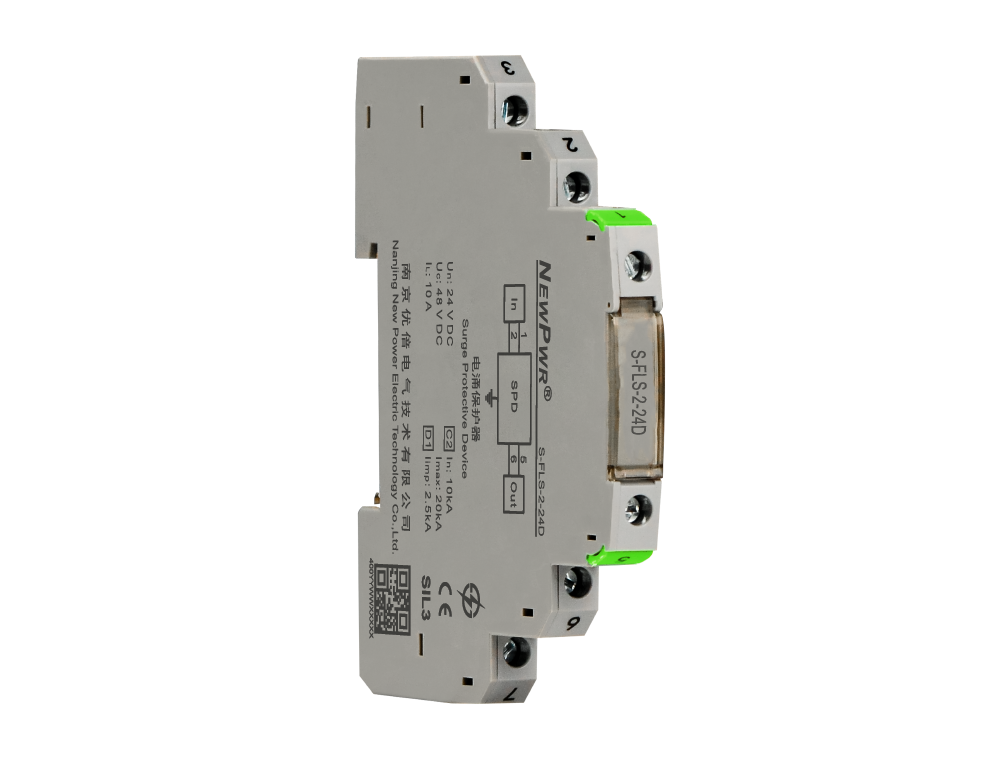

S-FLS-2-24D

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 24V DC power system.
玖鼎集团·(中国区)有限公司官网 玖鼎集团·(中国区)有限公司官网

Type

Wire system

Nominal discharge current

Ex

Share
S-FLS-2-24D

【Core technology】


【Installation and disposal】






Installation                                               Disposal



【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un 24 V
Max. continuous operating voltage Uc(DC) 48 V
Max. continuous operating voltage Uc(AC) 32 V
Nominal current IL 10 A
Response time Ta ＜ 1 ns
Bandwidth fG(100 Ω resistance) 10 MHz
Lightning parameters
Total lightning impulse current Iimp(10/350 μs) ,D1 5 kA
Lightning impulse current Iimp(10/350 μs) ,D1 2.5 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 10 kA
Voltage protection level Up(8/20 μs) ，C2 L – L ≤ 60 V/ L – PE ≤ 600 V
Voltage protection level Up(1 kV/μs) ，C3 L – L ≤ 45 V/ L – PE ≤ 600 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Material PC
Flame retardant grade(UL94) V0
Protection degree IP20
Mechanical specifications
Minimum installation wire cross-sectional area 0.2 mm?
Maximum installation wire cross-sectional area 2.5 mm?
Installtion 35 mm DIN rail
Grounding mode Rail/ terminal (Optional)
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals SIL, CE, FCC, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
λS (1 FIT=10-9/h) 1.68 FIT
λDU (1 FIT=10-9/h) 0.117 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 1.797 FIT
SFF 93.5%
PFDavg(T1=1Y) 5.12E-07
PFH 1.17E-10 1/h
