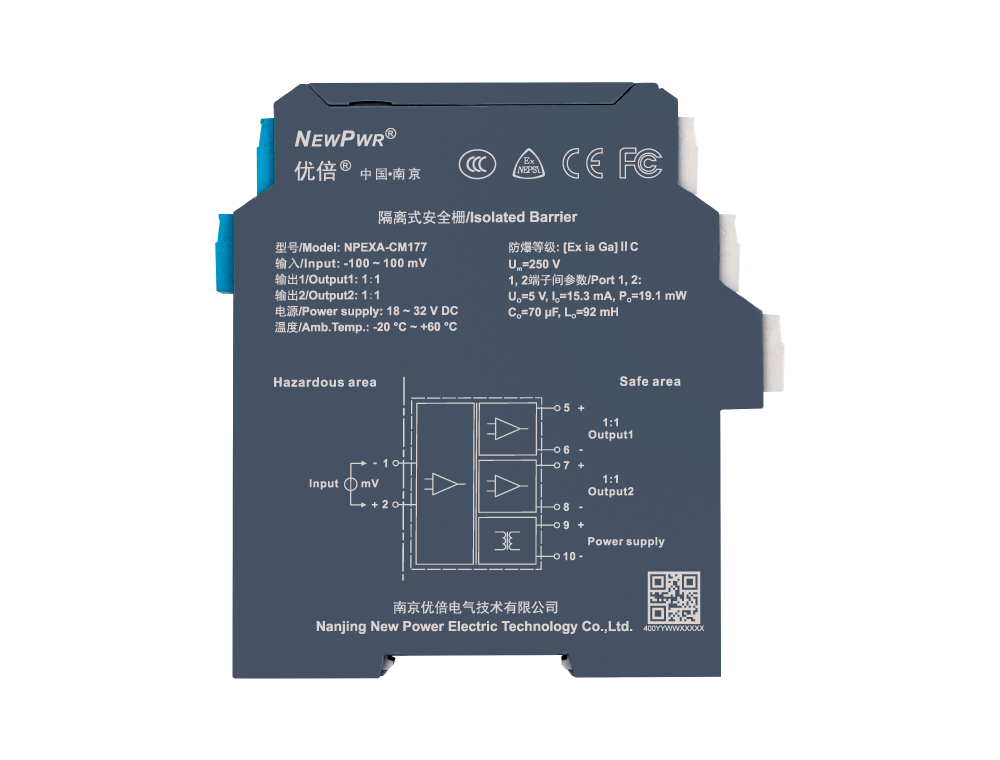

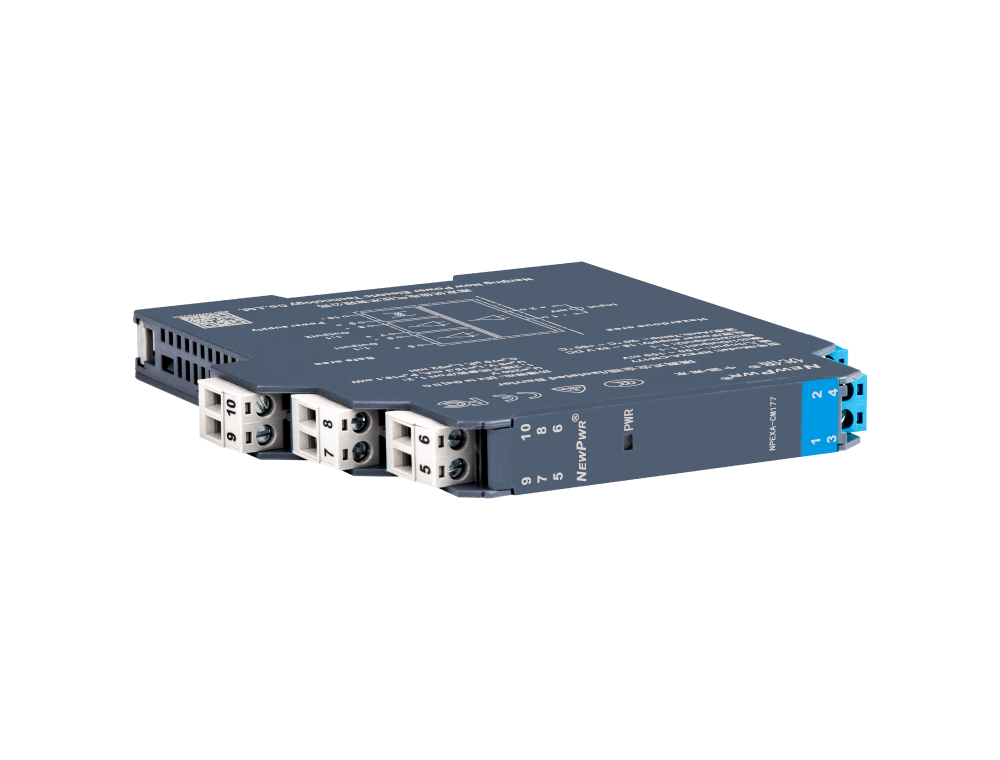

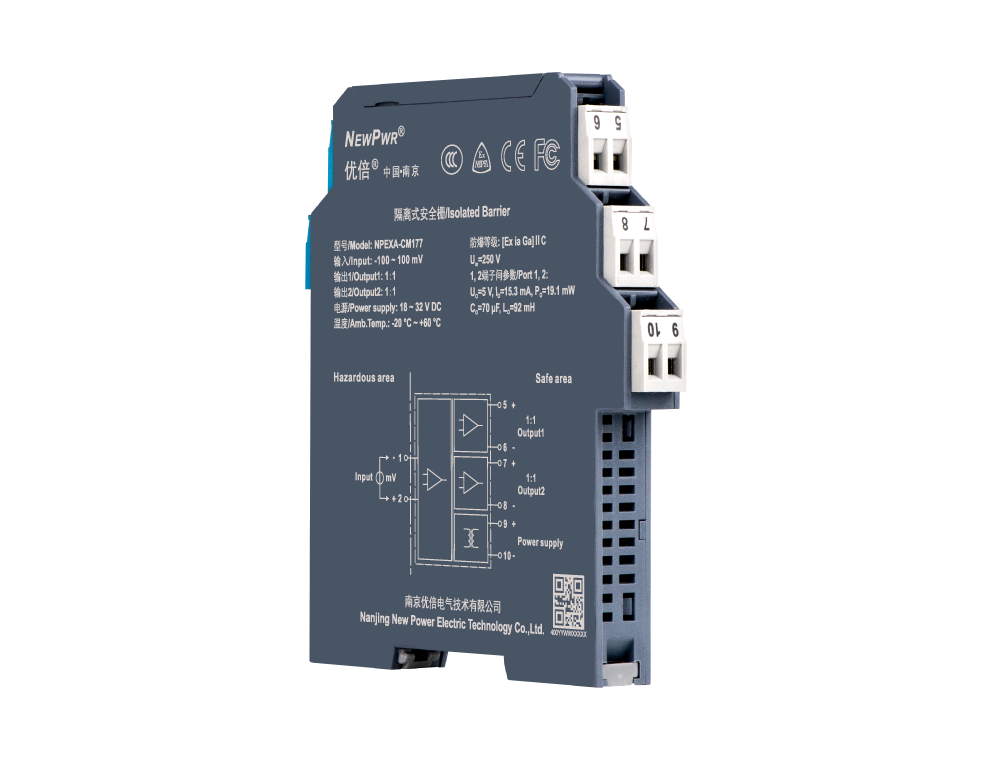

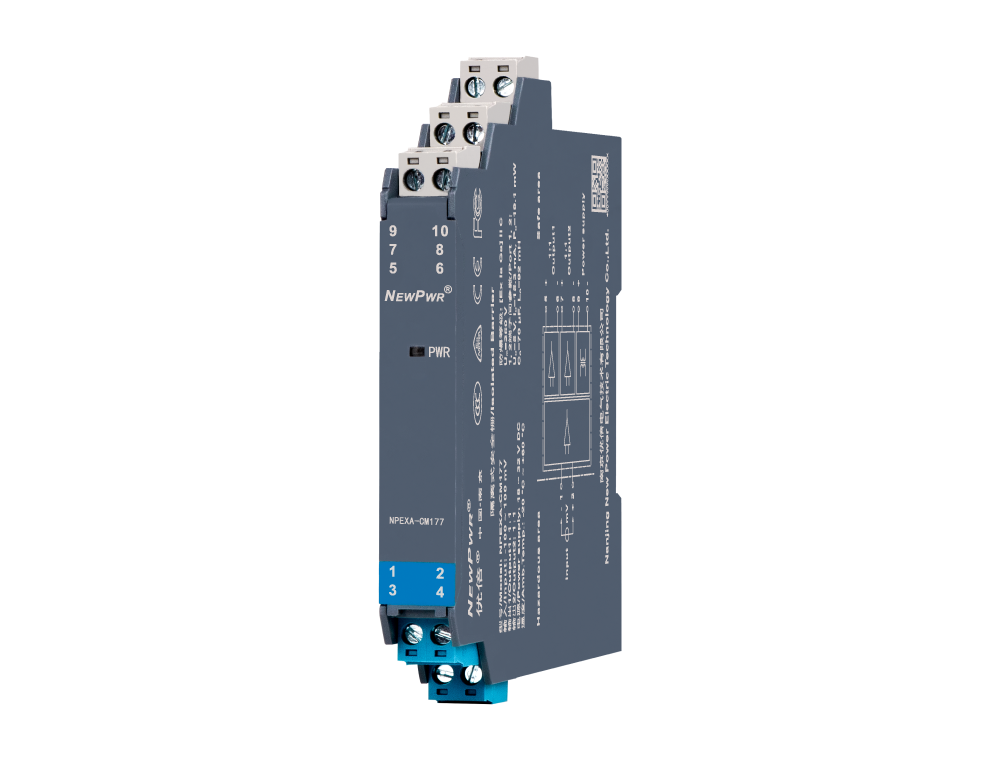

NPEXA-CM177

Millivolt input isolated barrier, it transfers the millivolt signals from a hazardous area to a safe area. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. It has the function of setting over range output when the input is disconnected.
玖鼎集团·(中国区)有限公司官网 玖鼎集团·(中国区)有限公司官网

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXA-CM177

【Core technology】


【Installation and disposal】






Installation                                               Disposal






【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Power supply 18 ~ 32 V DC
Input
Input signal -100 ~ 100 mV
Insulation resistance ≥ 20 MΩ
Output
Output signal 1 : 1
Output resistance 55 Ω
Transfer characterisics
Compensation accuracy 0.05 %F.S.
Temperature drift 0.005 %F.S. /℃
General parameters
Response time ≤ 2 ms
Power dissipation 0.8 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]ⅡC
Um 250 V
Uo 5 V (Terminals 1, 2)
Io 15.3 mA (Terminals 1, 2)
Po 19.1 mW (Terminals 1, 2)
Co 70 μF (Terminals 1, 2)
Lo 92 mH (Terminals 1, 2)
