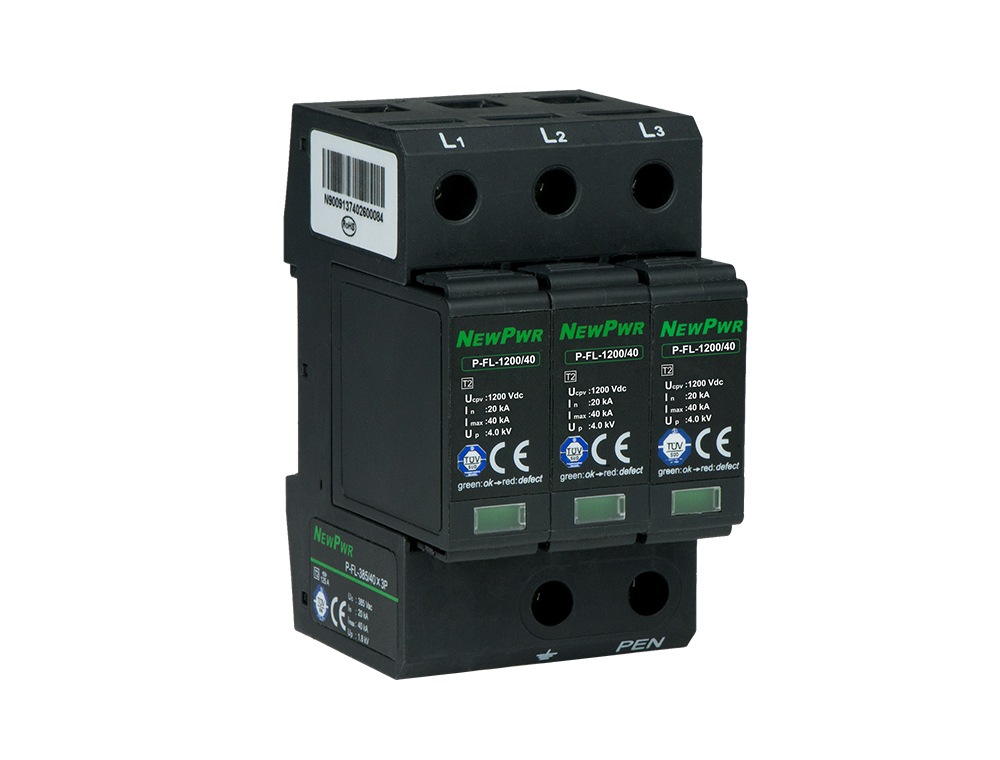

P-FL-1200/40.PV

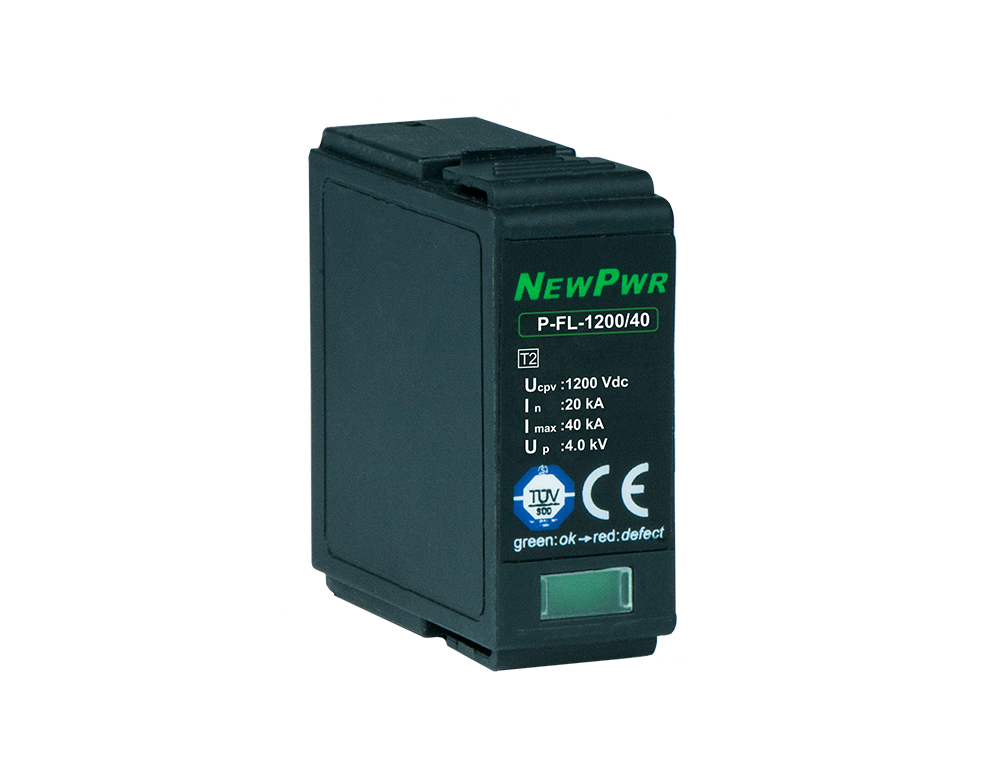

According to IEC and GB standard£¬£¬ £¬£¬£¬£¬£¬£¬SPD can release high voltage pulse energy,and limit surge in a safety voltage level. The complete device consists of a base module and plug-in protection modules and is ready for installation. I t i s su i table for LPZ0B ~ LPZ1 area and higher.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Type

Nomimal voltage

Protect level

Discharge current Imax

Power system

Share
P-FL-1200/40.PV

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal


¡¾Technical data¡¿ General parameters Lightning parameters Operating conditions Shell material Fault output ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
General parameters
Max. continuous operating d.c. voltage Ucpv 1200 Vdc
Response time Ta ¡Ü 25 ns
Lightning parameters
Nominal discharge current In (8/20 ¦Ìs) 20 kA
Max. discharge current Imax (8/20 ¦Ìs) 40 kA
Voltage protection level Up 4.0 kV
Voltage protection level (5kA) Up 3.0 kV
Max. overcurrent protection No requirements
Operating conditions
Operating temperature -40 ¡æ ~ +80 ¡æ
Shell material
Enclosure material Thermoplastic
Flame retardant grade (UL94) V0
Protection degree IP20
Fault output
Remote communication function Selection, Product model with remote terminals : P-FL-1200/40.PVR
Switching capacity 125 VAC/1 A, 125 VDC/0.2 A
Operating state/fault indication Green / red
Mechanical specifications
Enclosure dimensions (H¡ÁW¡ÁD) 90 mm ¡Á 54 mm ¡Á 66 mm
Cross-sectional area (Min.) 1.5 mm? stranded / flexible
Cross-sectional area (Max.) 25 mm? stranded / flexible
Installtion 35 mm DIN rail
Certified data
Standards EN 50539-11
Product approvals TUV, UL, CE, FCC
