S-FLS-2-24

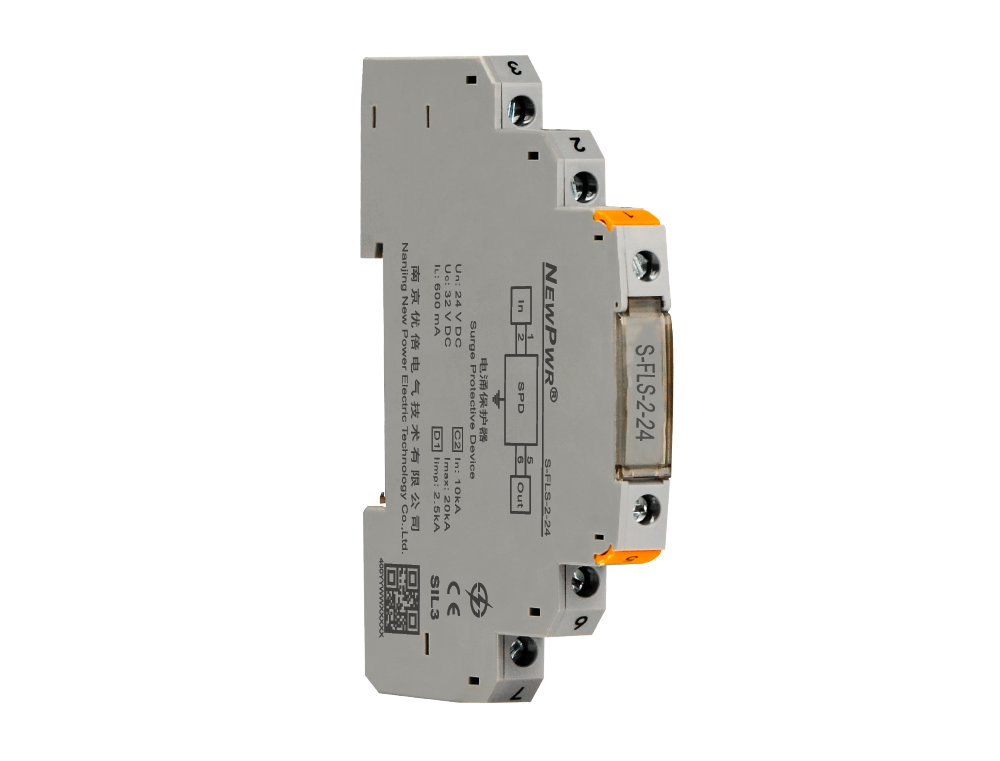

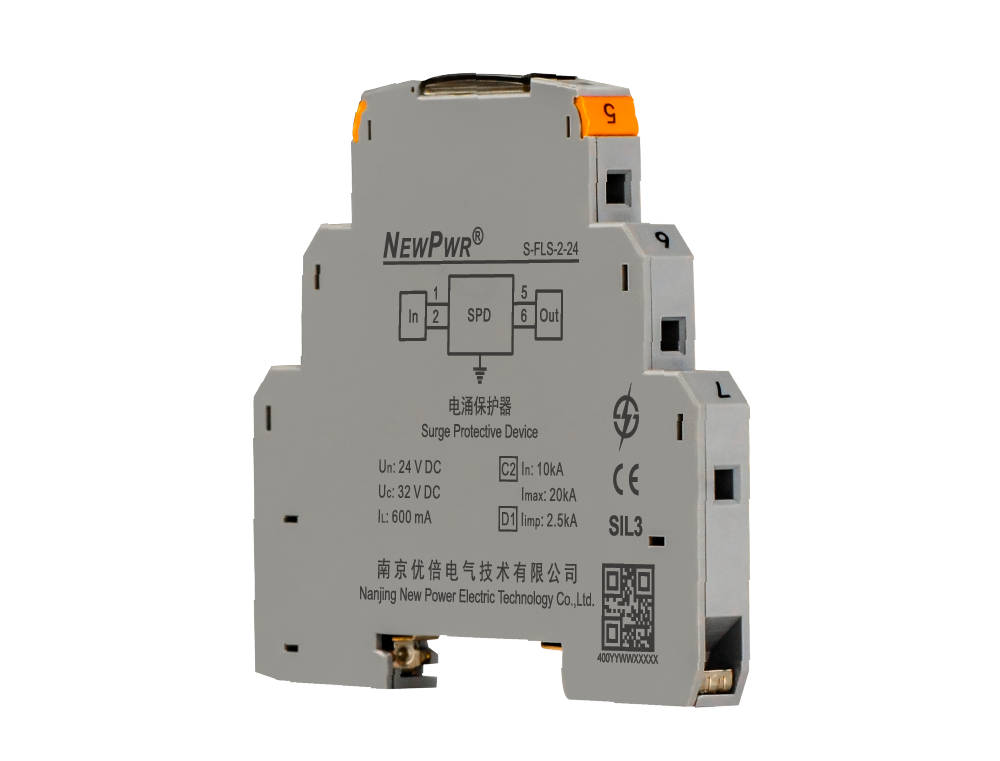

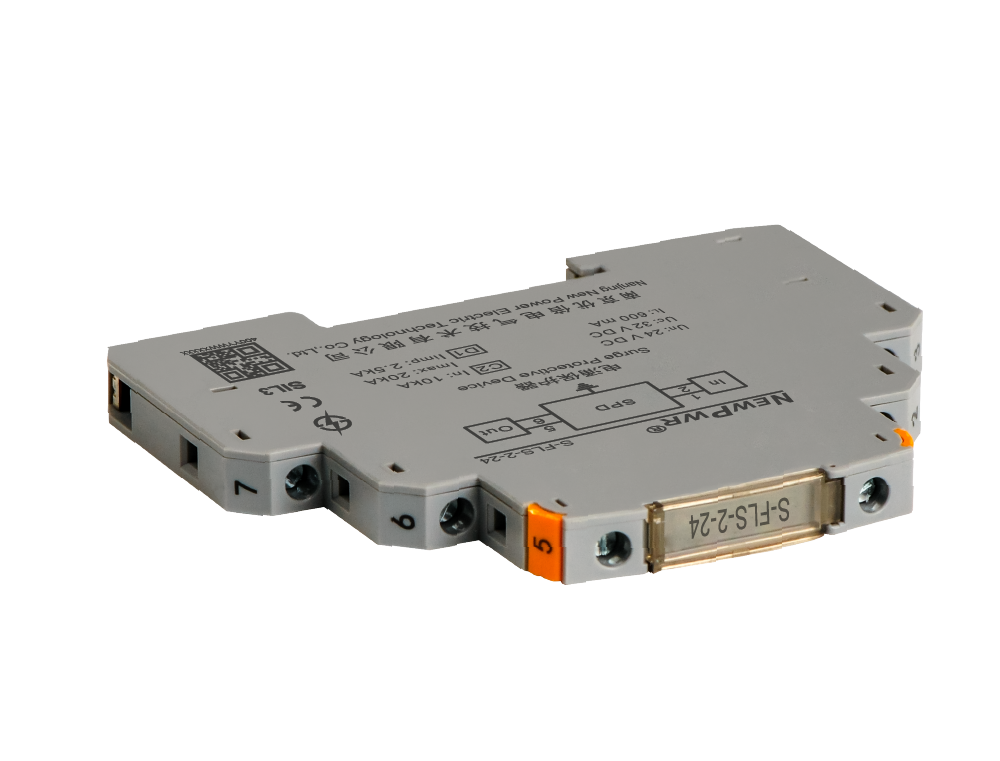

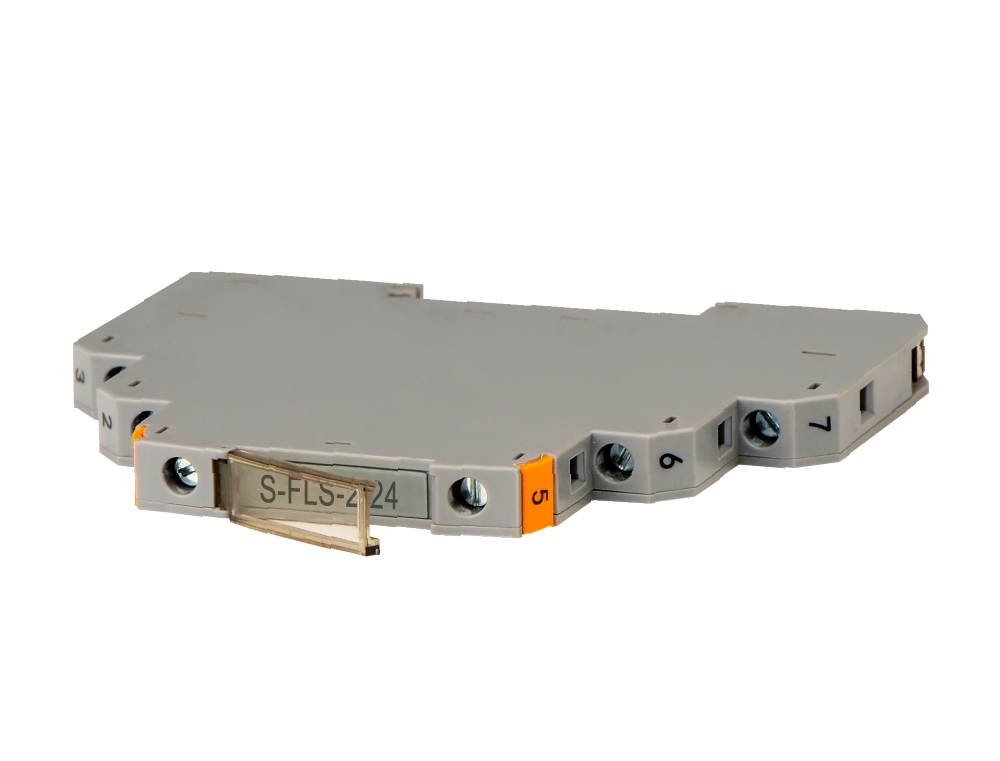

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 2-wire pressure transmitter, valve positioner, electrical converter, flowmeter, solenoid valve and other field instruments and FF, PROFIBUS PA ect.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Type

Wire system

Ex

Ground protection

Share
S-FLS-2-24

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal



¡¾Technical data¡¿ General parameters Lightning parameters Operating conditions Shell material ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
General parameters
Nominal voltage Un 24 V
Max. continuous operating voltage Uc(DC) 32 V
Max. continuous operating voltage Uc(AC) 22.5 V
Nominal current IL 600 mA
Series impedance 1.8 ¦¸
Response time Ta £¼ 1 ns
Bandwidth fG(100 ¦¸ resistance) 10 MHz
Lightning parameters
Total lightning impulse current Iimp(10/350 ¦Ìs) ,D1 5 kA
Lightning impulse current Iimp(10/350 ¦Ìs) ,D1 2.5 kA
Max. discharge current Imax(8/20 ¦Ìs) ,C2 20 kA
Nominal discharge current In(8/20 ¦Ìs) ,C2 10 kA
Voltage protection level Up(8/20 ¦Ìs) £¬£¬£¬£¬£¬C2 L ¨C L ¡Ü 60 V/ L ¨C PE ¡Ü 600 V
Voltage protection level Up(1 kV/¦Ìs) £¬£¬£¬£¬£¬C3 L ¨C L ¡Ü 45 V/ L ¨C PE ¡Ü 600 V
Operating conditions
Operating temperature -40 ¡æ ~ +80 ¡æ
Shell material
Material PC
Flame retardant grade(UL94) V0
Protection degree IP20
Mechanical specifications
Minimum installation wire cross-sectional area 0.2 mm?
Maximum installation wire cross-sectional area 2.5 mm?
Installtion 35 mm DIN rail
Grounding mode Rail/ terminal (Optional)
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals SIL, CE, FCC, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
¦ËS (1 FIT=10-9/h) 9.40 FIT
¦ËDU (1 FIT=10-9/h) 0.464 FIT
¦ËDD (1 FIT=10-9/h) 0 FIT
¦ËTOTAL (1 FIT=10-9/h) 9.864 FIT
SFF 95.3%
PFDavg(T1=1Y) 2.03E-06
PFH 4.60E-10 1/h
