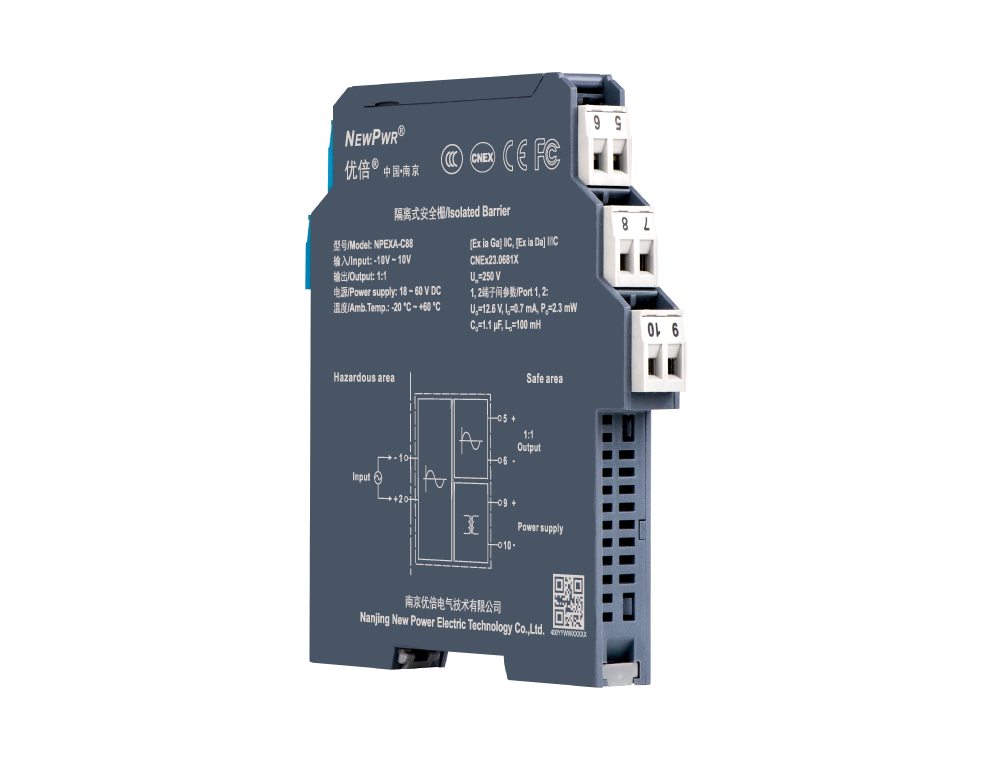

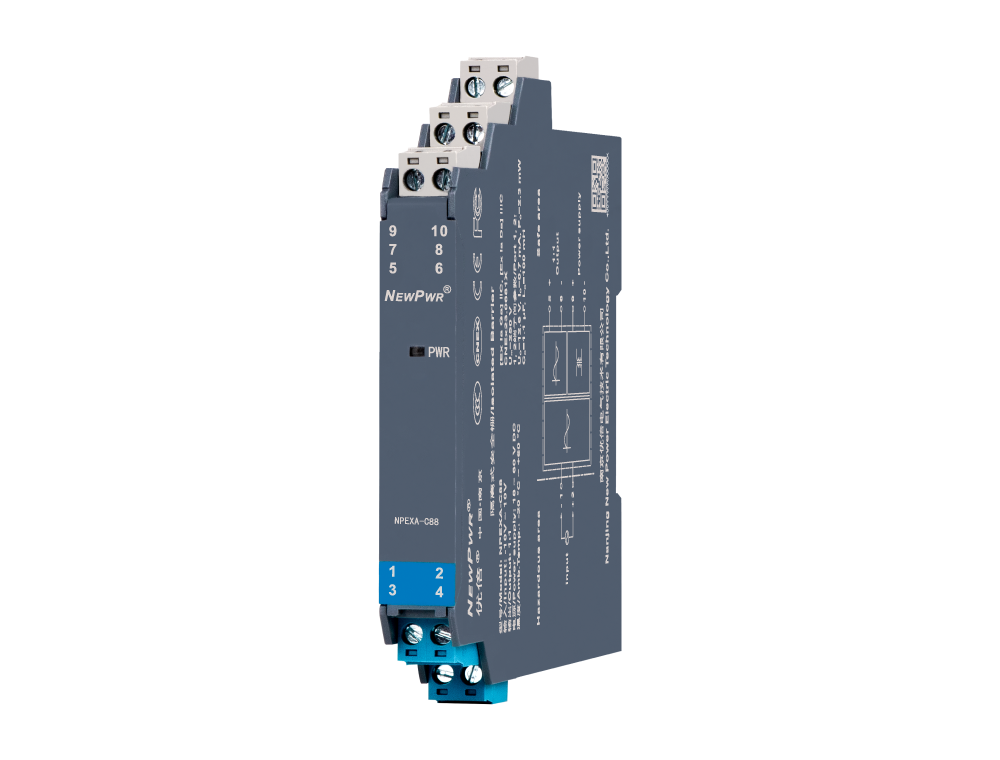

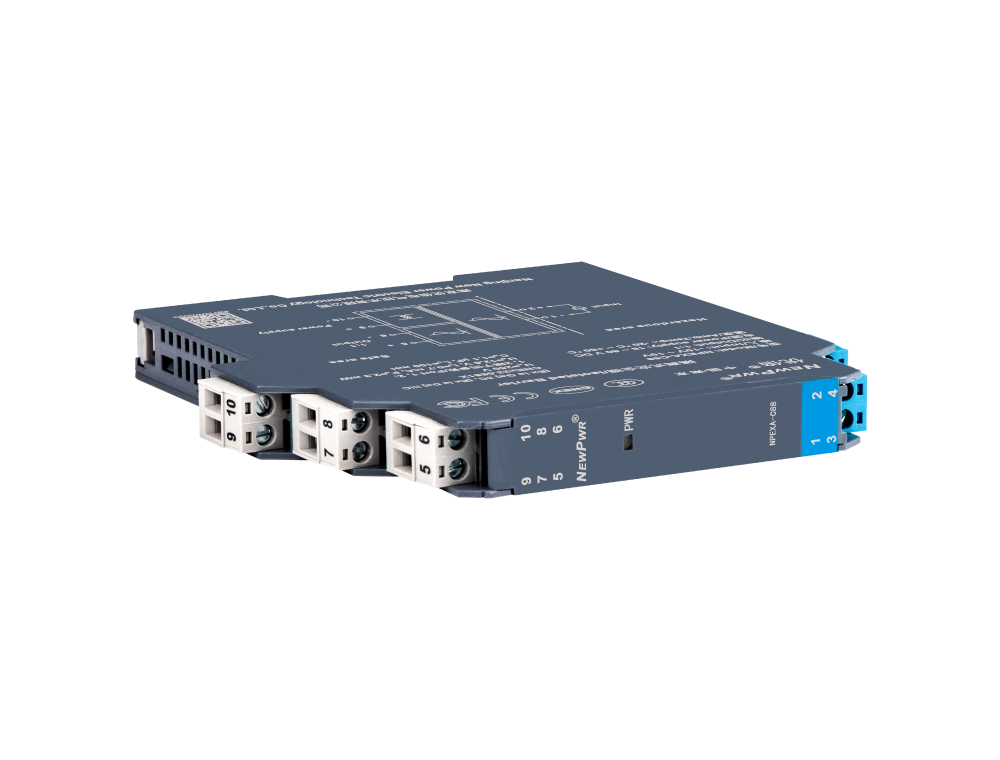

NPEXA-C88
¡¾Core technology¡¿
¡¾Installation and disposal¡¿
Installation Disposal
| Power supply | 18 ~ 60 V DC |
| Input signal | -10 V AC ~ 10 V AC |
| Line resistance | ¡Ý 10 k¦¸ |
| Cut-off frequency | -0.1 dB£¨1 kHz£© |
| Output signal | -10 V AC ~ 10 V AC |
| Load resistance | £¼ 10 ¦¸ |
| Accuracy | 0.2 %F.S. |
| Power dissipation | 0.6 W |
| Electromagnetic compatibility | IEC 61326-3-1 |
| Dielectric strength | ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side) ¡Ý 1500V AC (Power supply /non-intrinsically safe side) |
| Insulation resistance | ¡Ý 100 M¦¸ (Input /Output/Power supply) |
| Operation temperature | -20 ¡æ ~ +60 ¡æ |
| Storage temperature | -40 ¡æ ~ +80 ¡æ |
| Suitable location | Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, ¢óC, T4 ~ T6 |
| Connection method | Screw connection |
| Dimension | 12.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D) |
| Mounting type | DIN35 mm |
| Product approvals | CNEX, CE, FCC, CCC |
| Ex marking | [Ex ia Ga]¢òC, [Ex ia Da] ¢óC |
| Um | 250 V |
| Uo | 12.6 V (Terminals 1, 2) |
| Io | 0.7 mA (Terminals 1, 2) |
| Po | 2.3 mW (Terminals 1, 2) |
| Co | 1.1 ¦ÌF (Terminals 1, 2) |
| Lo | 100 mH (Terminals 1, 2) |
Ò»ÈëÒ»³ö
ÈȵçżÊäÈëÇå¾²Õ¤
