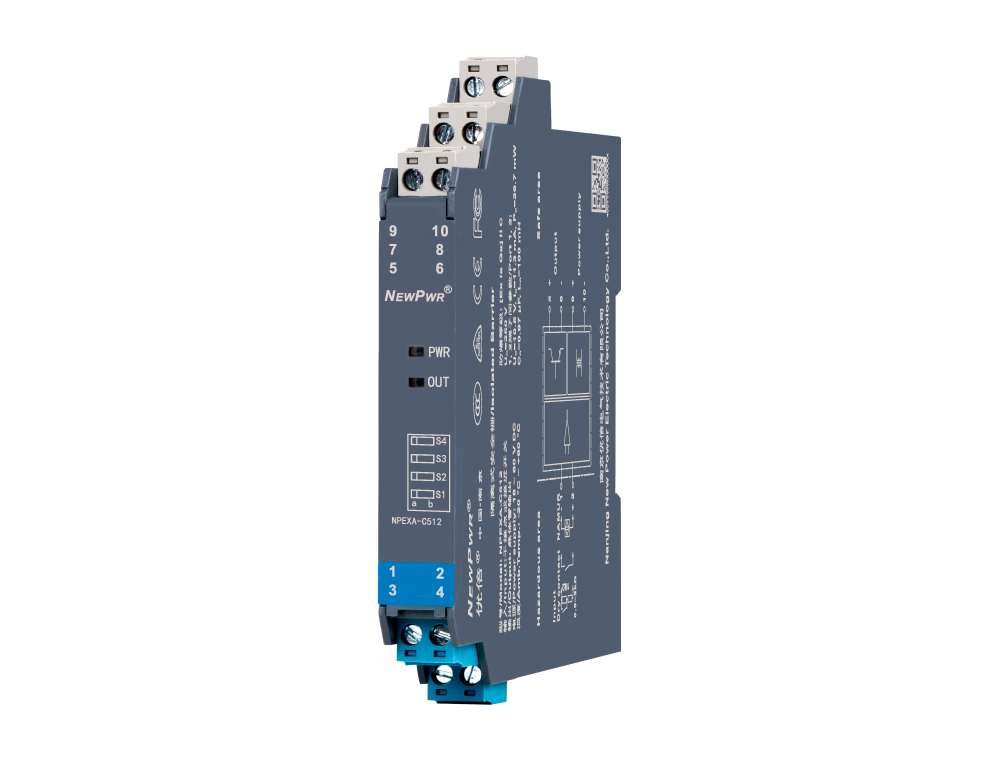

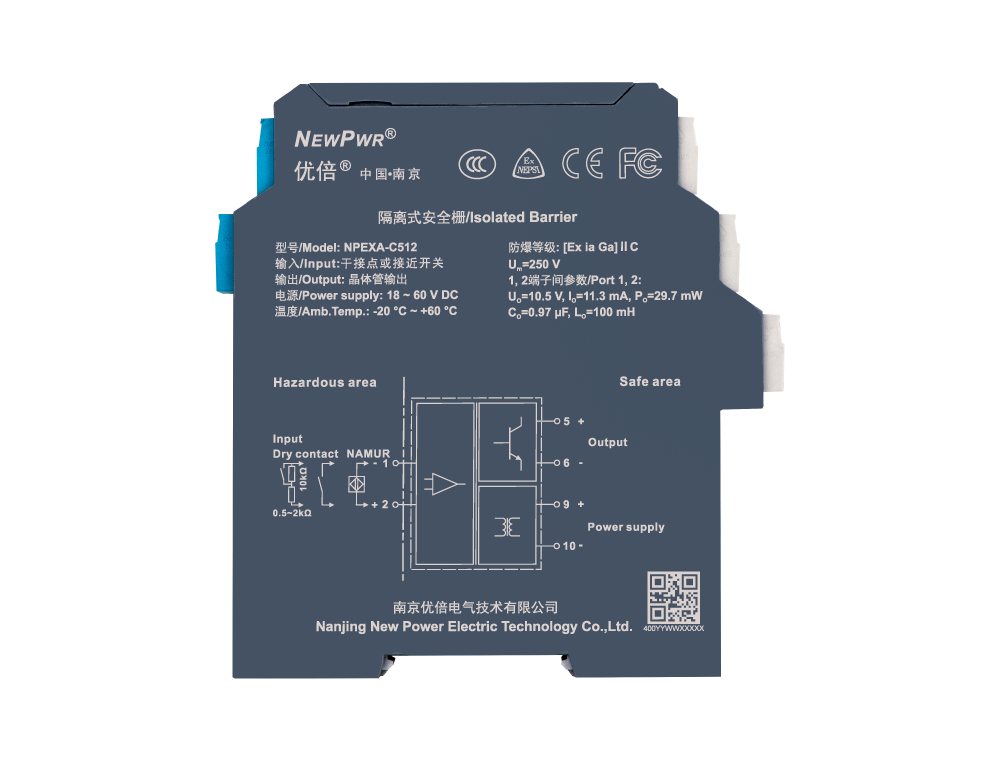

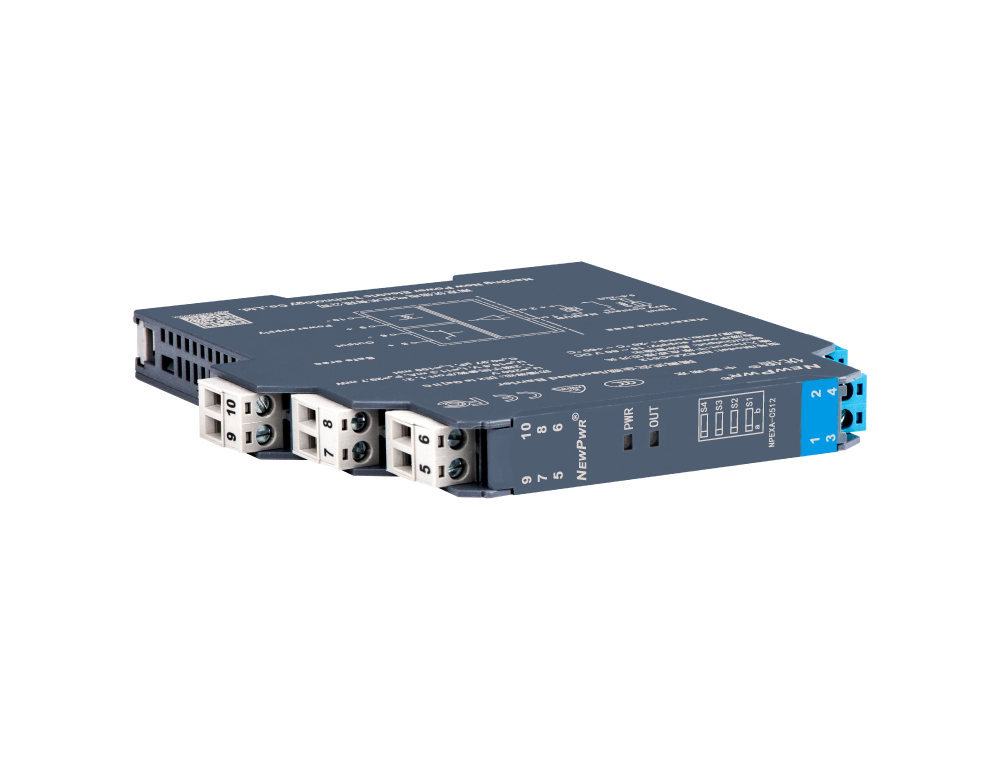

NPEXA-C512

Digital input isolated barrier, it converts switch or proximity detector signals (dry contact or NAMUR) from a hazardous area into transistor signals to a safe area by isolation. The normal output sate and line fault detection function can be set with the DIP switch. The input, output, and power supply are galvanically isolated from each other.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

LFD

Share
NPEXA-C512

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal






Supply
Power supply 18 ~ 60 V DC
Input
Input signal Dry contact or NAMUR
Output
Output signal Transistor
External voltage £¼ 40 V DC
Sink current ¡Ü 40 mA
General parameters
Switching trigger point Input signal > 2.1mA, signal ¡°1¡±, the yellow LED is always bright£»£»£»£»£»£»£»£» Input signal < 1.2m¦¡, signal ¡°0¡±, the yellow LED goes out
Switch frequency £¼ 5 kHz
DIP switch settings S1¡úa£ºoutput1 normal mode£»£»£»£»£»£»£»£»S1¡úb£ºinverted mode£»£»£»£»£»£»£»£»S2¡úa£ºLFD on£»£»£»£»£»£»£»£»S2¡úb£ºLFD off
ÊÂÇ鹦ºÄ 1 W
EMC data
µç´Å¼æÈÝ IEC 61326-3-1
Electromagnetic compatibility ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side); ¡Ý 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, T4 ~ T6
State
LFD function When input current ¡Ü 50¦ÌA, considers the input line breakdown, the output relay de-energized. If input current ¡Ý 6.5mA, considers the input circuit short-circuit, the output relay de-energized, the indicator red flashing
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òC
Um 250 V
Uo 10.5 V (Terminals 1, 2)
Io 11.3 mA (Terminals 1, 2)
Po 29.7 mW (Terminals 1, 2)
Co 0.97 ¦ÌF (Terminals 1, 2)
Lo 100 mH (Terminals 1, 2)
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø
NPPB-DIN Bus rail power supply
35mm standard rail
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø
NPPB-BS210 I/O terminal base
Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø
NPPB-BSC028 Dust cover
Protect the exposed bus and split the combination as needed.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø
NPPB-SS5 Limiter
For fixed position, standard 2 sets
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø
NPPB-TS35B Fixed piece
Material: metal iron, used for rail load-bearing reinforcement, standard 2 pieces
