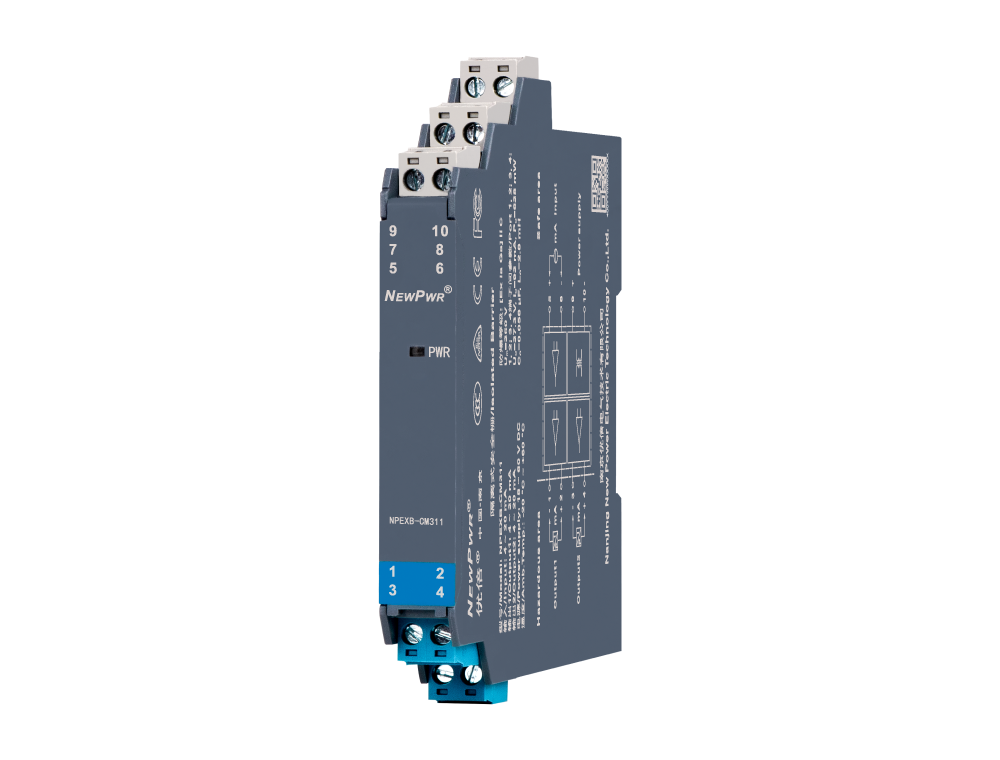

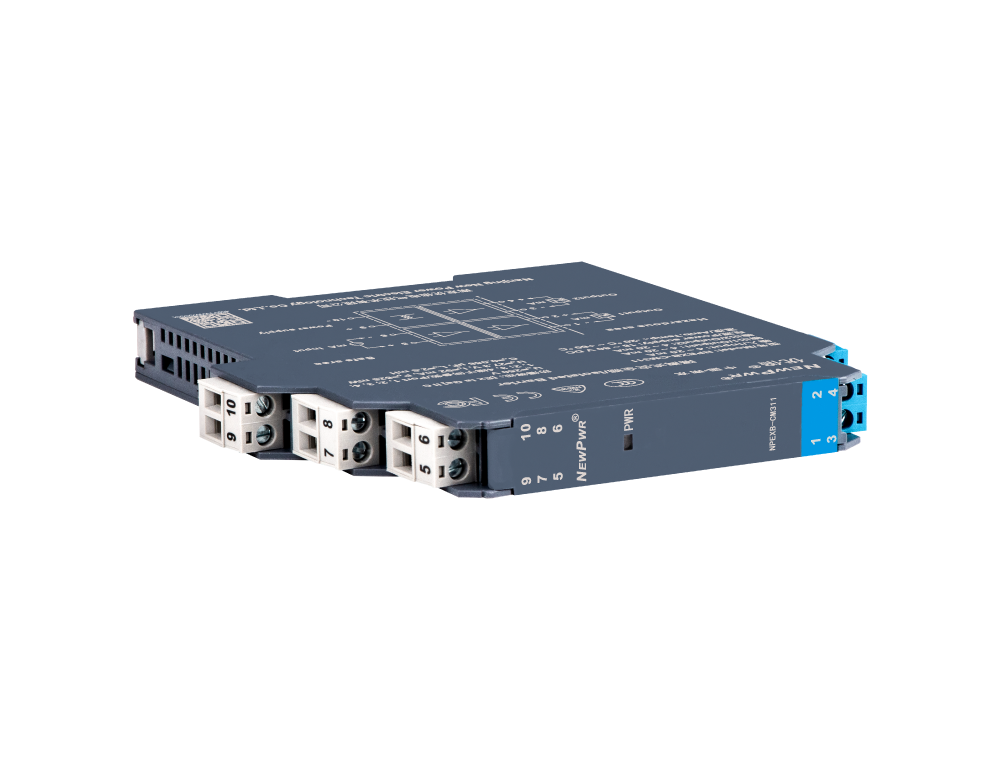

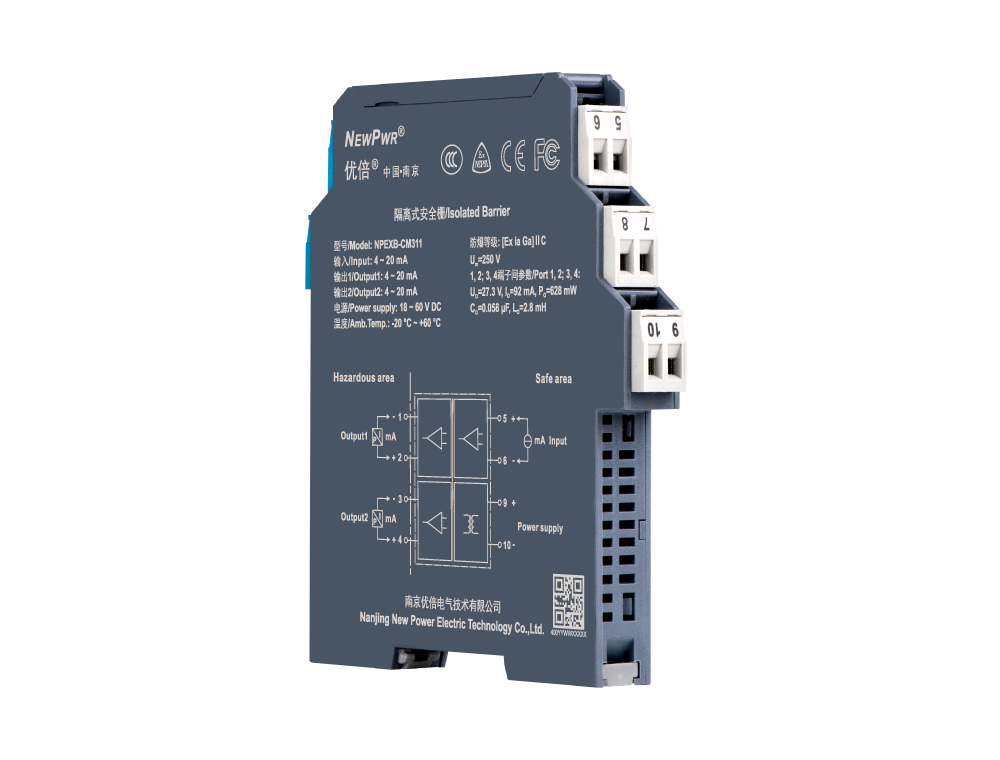

NPEXB-CM311
【Core technology】
【Installation and disposal】
Installation Disposal
| Power supply | 18 ~ 60 V DC |
| Input signal | 4 ~ 20mA, HART |
| Input voltage drop | ≤ 1.2 V |
| Output signal | 4 ~ 20mA, HART |
| Load resistance | 80 ~ 800 Ω |
| Accuracy | 0.1 %F.S. |
| Temperature drift | 30 ppm/℃ |
| Response time | ≤ 2 ms |
| Power dissipation | 2.2 W |
| Electromagnetic compatibility | IEC 61326-3-1 |
| Dielectric strength | ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side) |
| Insulation resistance | ≥ 100 MΩ (Input /Output/Power supply) |
| Operation temperature | -20 ℃ ~ +60 ℃ |
| Storage temperature | -40 ℃ ~ +80 ℃ |
| Suitable location | Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6 |
| Connection method | Screw connection |
| Dimension | 12.8mm (W) × 110mm (H) × 117mm (D) |
| Mounting type | DIN35 mm |
| Product approvals | NEPSI, CE, FCC, CCC |
| Ex marking | [Ex ia Ga]ⅡC |
| Um | 250 V |
| Uo | 27.3 V (Terminals 1, 2) |
| Io | 92 mA (Terminals 1, 2) |
| Po | 628 mW (Terminals 1, 2) |
| Co | 0.058 μF (Terminals 1, 2) |
| Lo | 2.8 mH (Terminals 1, 2) |
