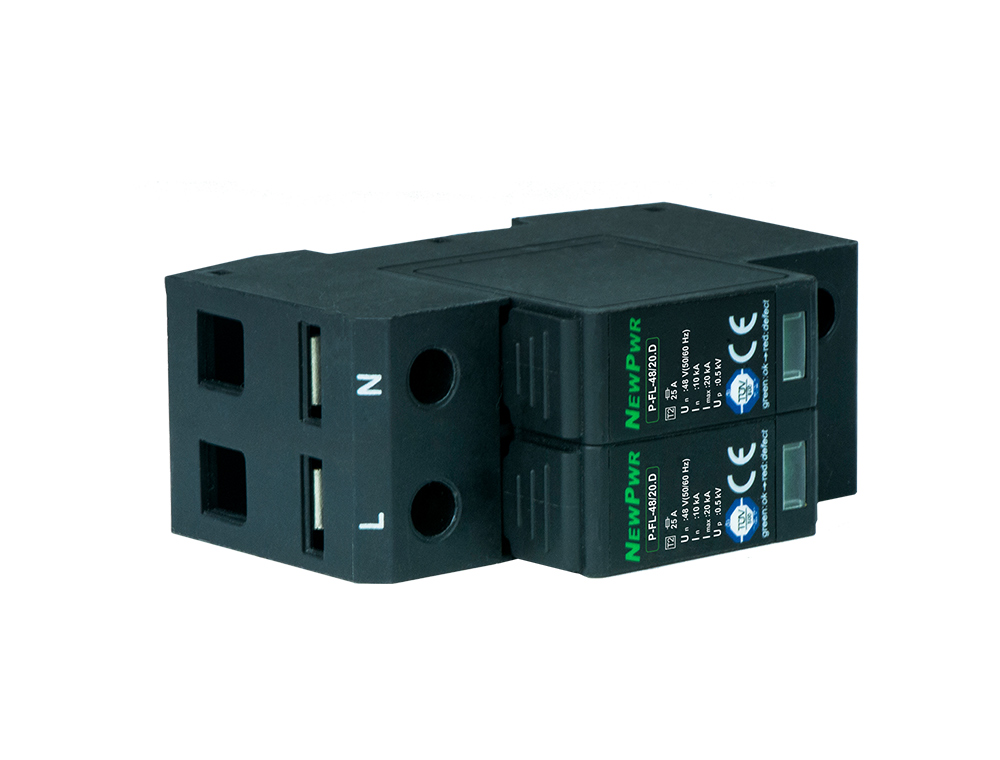

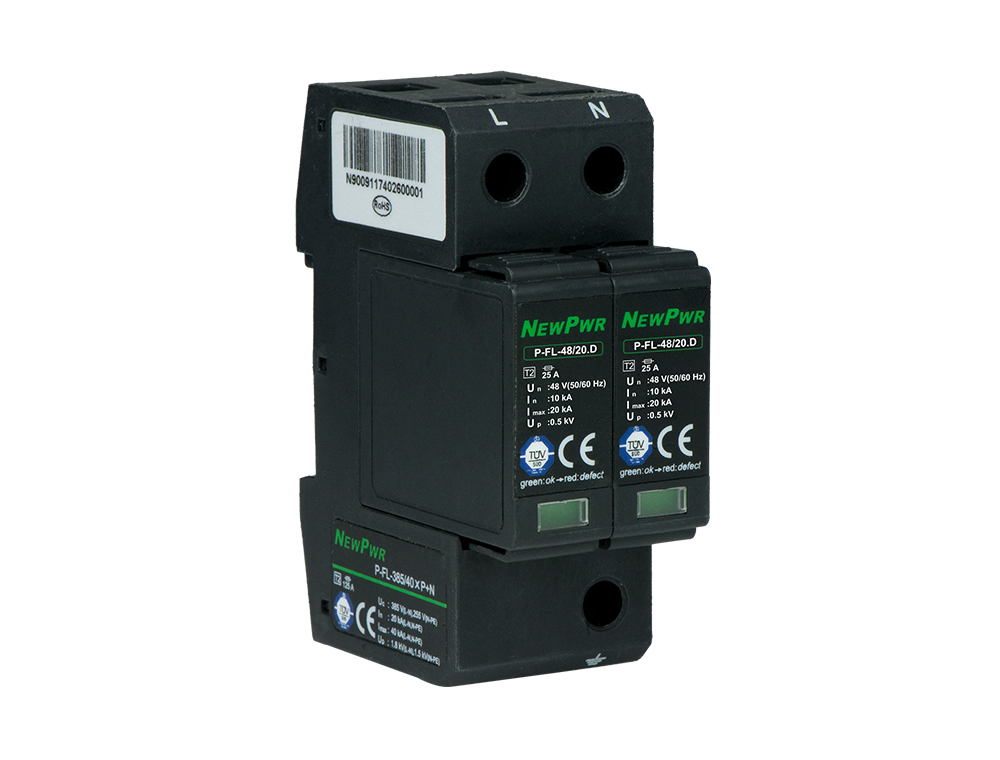

P-FL-48/20.D

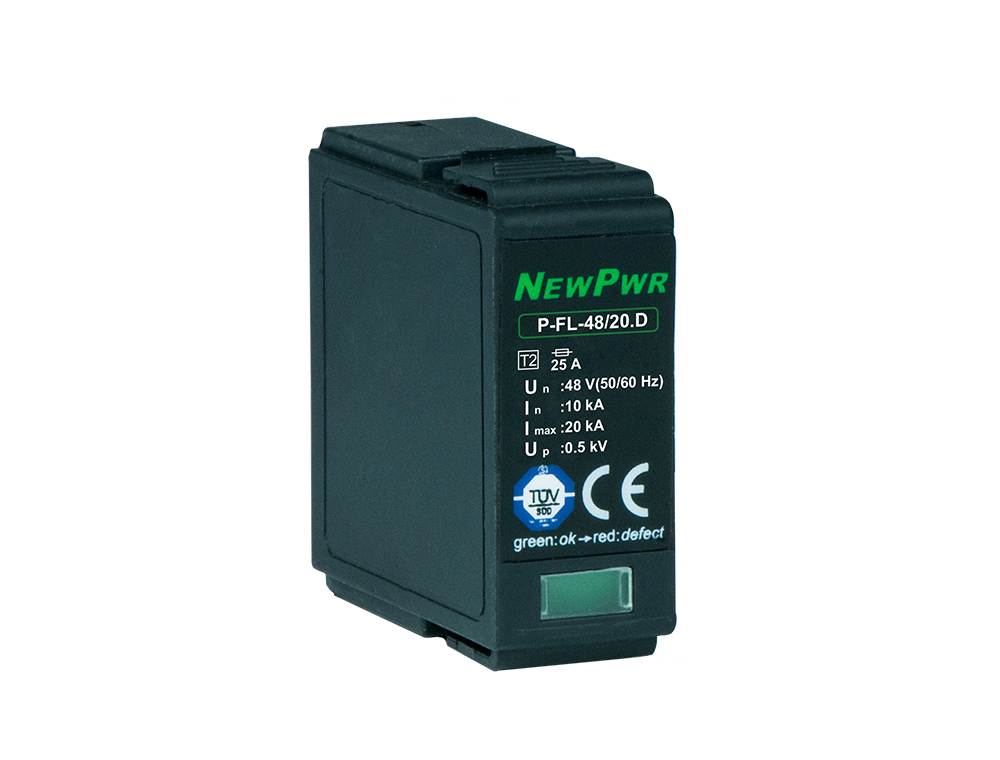

It can use for 48VDC power system, protected terminal equipment, limit surge and meet to a safety voltage. comprising a base part and a plug-in protection modulel. It is suitable for LPZ1 ~ LPZ2 area and higher.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Type

Nomimal voltage

Protect level

Discharge current Imax

Power system

Share
P-FL-48/20.D

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal


¡¾Technical data¡¿ General parameters Lightning parameters Operating conditions Shell material Fault output ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
General parameters
Nominal voltage Un 48 Vdc
Max. continuous operating voltage Uc 60 Vdc
Response time Ta ¡Ü 25 ns
Lightning parameters
Nominal discharge current In (8/20 ¦Ìs) 10 kA
Max. discharge current Imax (8/20 ¦Ìs) 20 kA
Voltage protection level Up 0.5 kV
Voltage protection level (5kA) Up 0.3 kV
Max. overcurrent protection ¡Ü 25 A gL/gG or SCB(P-SC-385/25¡Á2P)
Operating conditions
Operating temperature -40 ¡æ ~ +80 ¡æ
Shell material
Enclosure material Thermoplastic
Flame retardant grade (UL94) V0
Protection degree IP20
Fault output
Remote communication function Selection, Product model with remote terminals: P-FL-48/20.DR
Switching capacity 125 VAC/1 A, 125 VDC/0.2 A
Operating state/fault indication Green / red
Mechanical specifications
Enclosure dimensions (H¡ÁW¡ÁD) 90 mm¡Á36 mm¡Á66 mm
Cross-sectional area (Min.) 1.5 mm? stranded / flexible
Cross-sectional area (Max.) 25 mm? stranded / flexible
Installtion 35 mm DIN rail
Certified data
Standards IEC 61643-11/EN61643-11
Product approvals TUV, UL, CE, FCC
