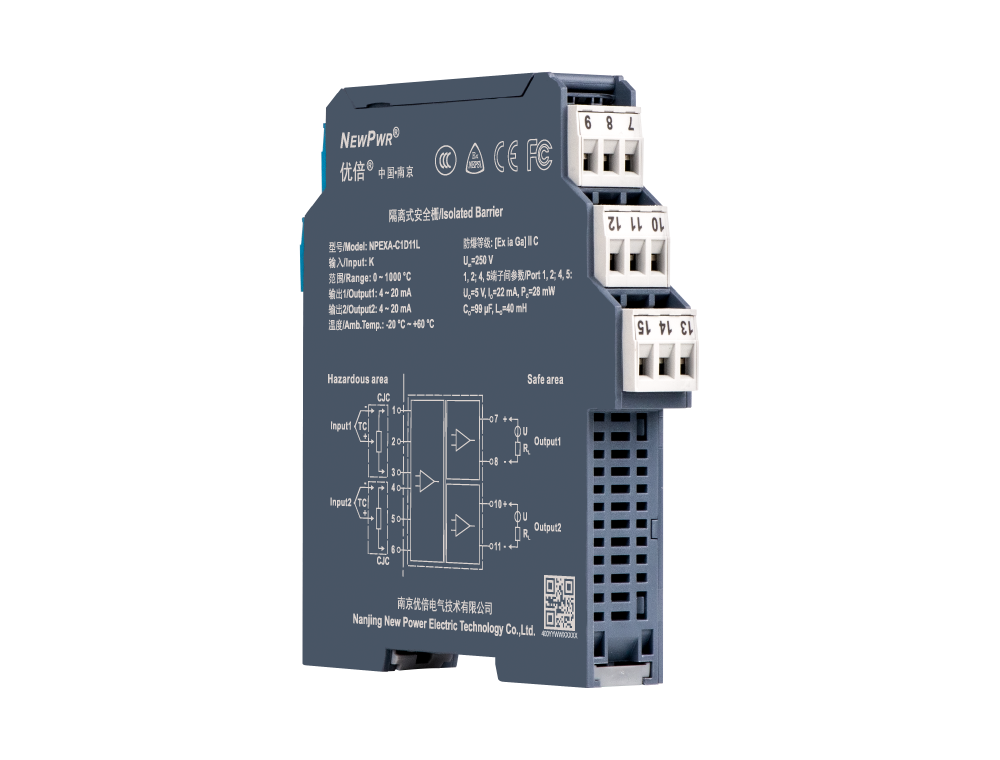

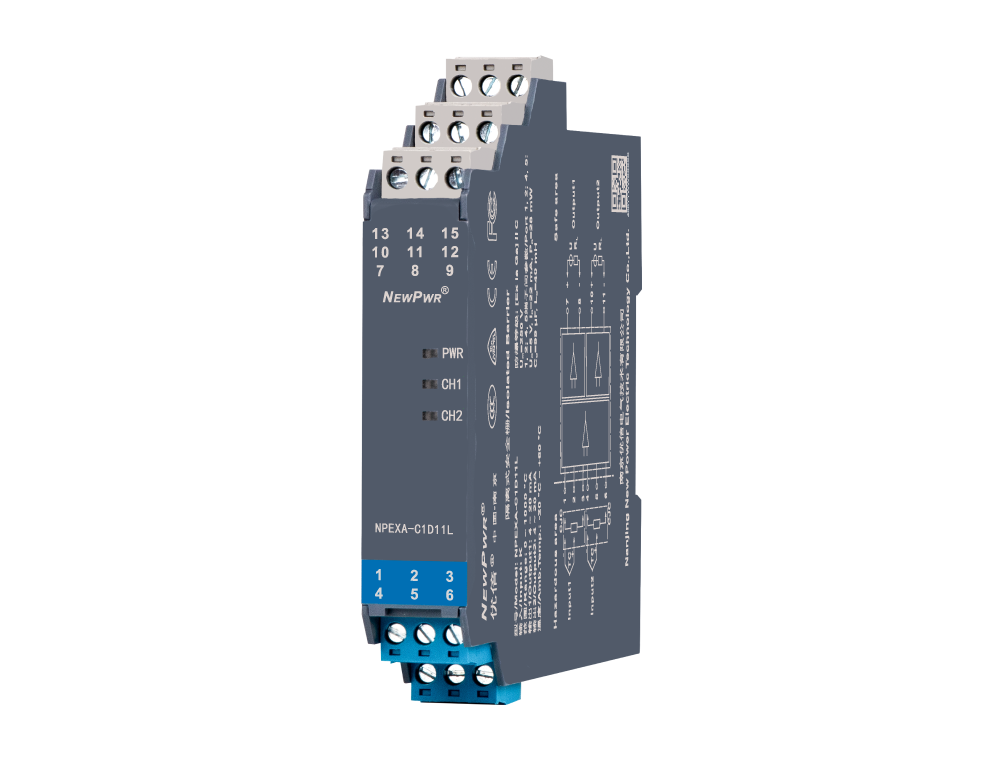

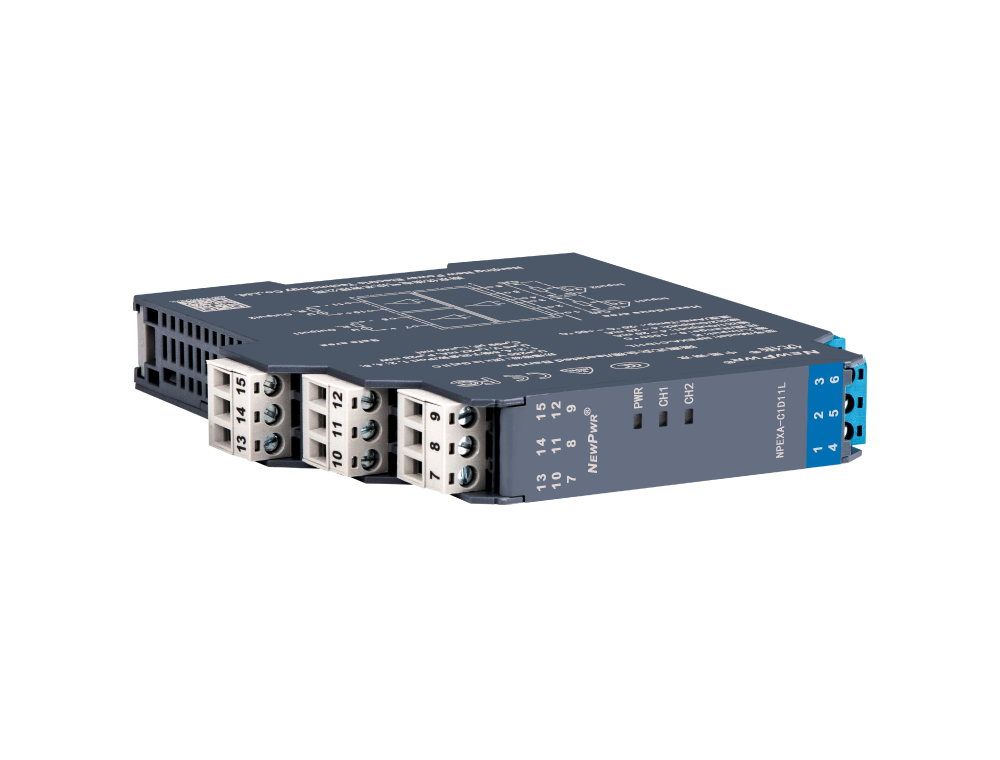

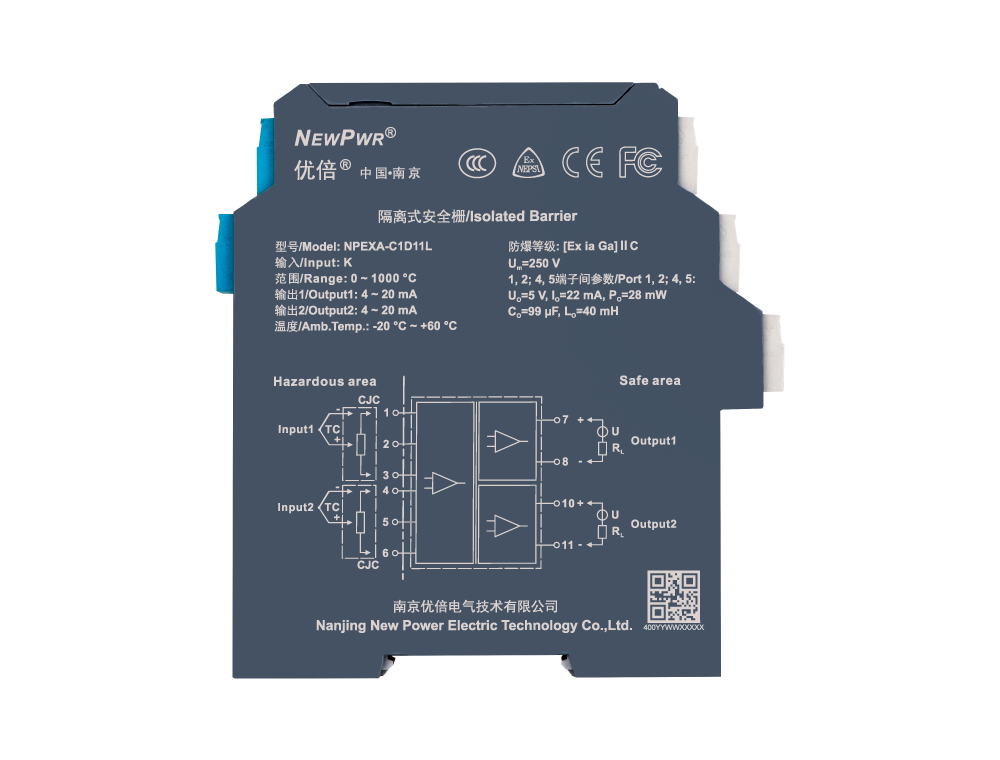

NPEXA- C1D11L

Temperature input isolated barrier, it converts the thermocouple signals from a hazardous area into 4~20mA signals to a safe area by isolation. It has loop powered. The input and output is galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXA- C1D11L

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal






¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Loop Powered 12 ~ 30 V DC
Input
Input signal K, E, S, B, J, T, R, N, etc.
Output
Output signal 4 ~ 20 mA
Load resistance RL < [(U-12)/0.022]¦¸; U is loop powered voltage
Transfer characterisics
Conversion accuracy-K -200 ¡æ ~ +1372 ¡æ/£¼300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Conversion accuracy-E -100 ¡æ ~ +1000 ¡æ/£¼300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Conversion accuracy-J -100 ¡æ ~ +1200 ¡æ/£¼300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Conversion accuracy-N -200 ¡æ ~ +1300 ¡æ/£¼300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Conversion accuracy-S -50 ¡æ ~ +1768 ¡æ/£¼500 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.5 ¡æ/¡Ý500 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Conversion accuracy-R -50 ¡æ ~ +1768 ¡æ/£¼500 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.5 ¡æ/¡Ý500 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Conversion accuracy-T -20 ¡æ ~ +400 ¡æ/£¼300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Conversion accuracy-B +400 ¡æ ~ +1820 ¡æ/£¼500 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.5 ¡æ/¡Ý500 ¡æ£¬£¬ £¬£¬£¬£¬ £¬¡À0.1 %F.S.
Temperature drift 0.015 %F.S./¡æ
General parameters
Compensation accuracy 1¡ãC (Temperature compensation range: -20¡ãC ~ +60¡ãC)
Response time 1 s
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 2500V AC (intrinsically safe side / non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, ¢óC, T4 ~ T6
State
Output states Whatever input fault status (except breakage, the output is 3.5mA), the output follows the input within measuring range. And the maximum value would not exceed 22mA ,the maximum output value would not less than 3.5mA
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òC, [Ex ia Da] ¢óC
Um 250 V
Uo 5 V (Terminals 1, 2; 4, 5)
Io 22 mA (Terminals 1, 2; 4, 5)
Po 28 mW (Terminals 1, 2; 4, 5)
Co (¢òC) 99 ¦ÌF (Terminals 1, 2; 4, 5)
Lo (¢òC) 40 mH (Terminals 1, 2; 4, 5)
