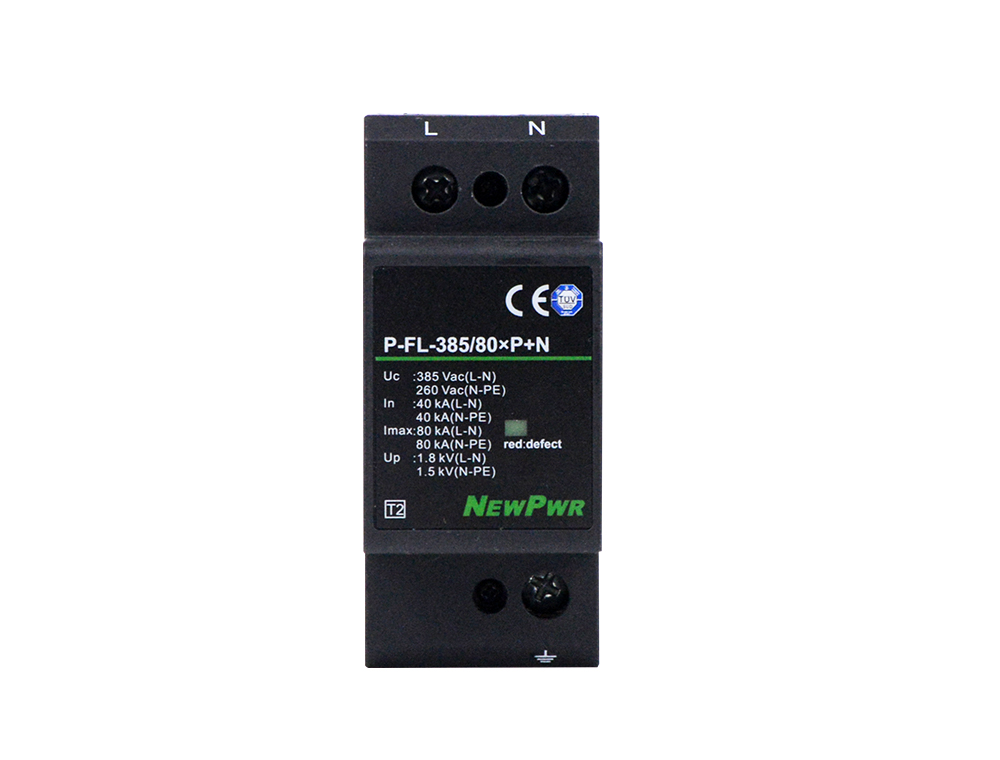

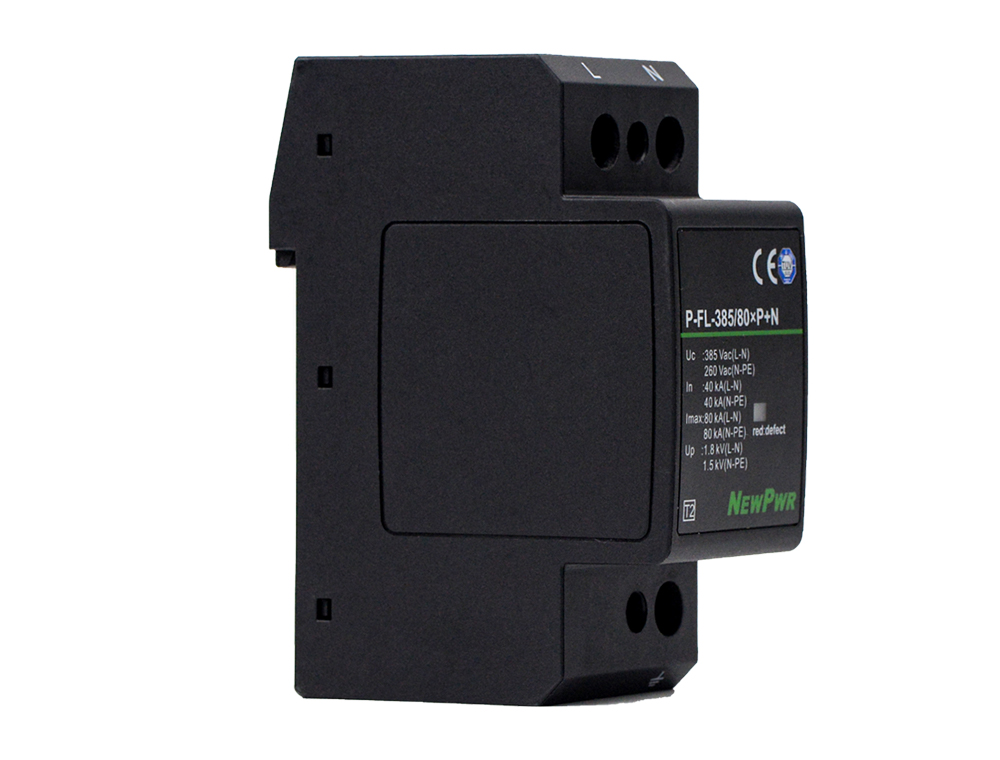

P-FL-385/80×P+N
【Core technology】
【Installation and disposal】
Installation Disposal
| Nominal voltage Un | 240/415 Vac |
| Max. continuous operating voltage Uc | 385 Vac (L-N), 260 Vac (N-PE) |
| Response time Ta | ≤ 100 ns |
| Nominal discharge current In (8/20 μs) | 40 kA |
| Max. discharge current Imax (8/20 μs) | 80 kA |
| Voltage protection level Up | 1.8 kV (L-N), 1.5 kV (N-PE) |
| Voltage protection level (5kA) Up | 1.0 kV |
| Max. overcurrent protection | ≤125A gL/gG or SCB (P-SC-385/80×1P) |
| Operating temperature | -40℃ ~+85℃ |
| Enclosure material | Thermoplastic |
| Flame retardant grade (UL94) | V0 |
| Protection degree | IP20 |
| Remote communication function | Selection, Product model with remote terminals: P-FL-385/80×P+NR |
| Switching capacity | Max:125 VAC/1A，，，， ，，Min:5 V/1mA |
| Operating state/fault indication | Green / red |
| Enclosure dimensions (H×W×D) | 90 mm × 38.5 mm × 68.5mm |
| Cross-sectional area (Min.) | 1.5 mm? stranded / flexible |
| Cross-sectional area (Max.) | 25 mm? stranded / flexible |
| Installtion | 35 mm DIN rail |
| Standards | IEC 61643-11/ EN 61643-11 |
| Product approvals | TUV，，，， ，，UL，，，， ，，CE，，，， ，，FCC |
