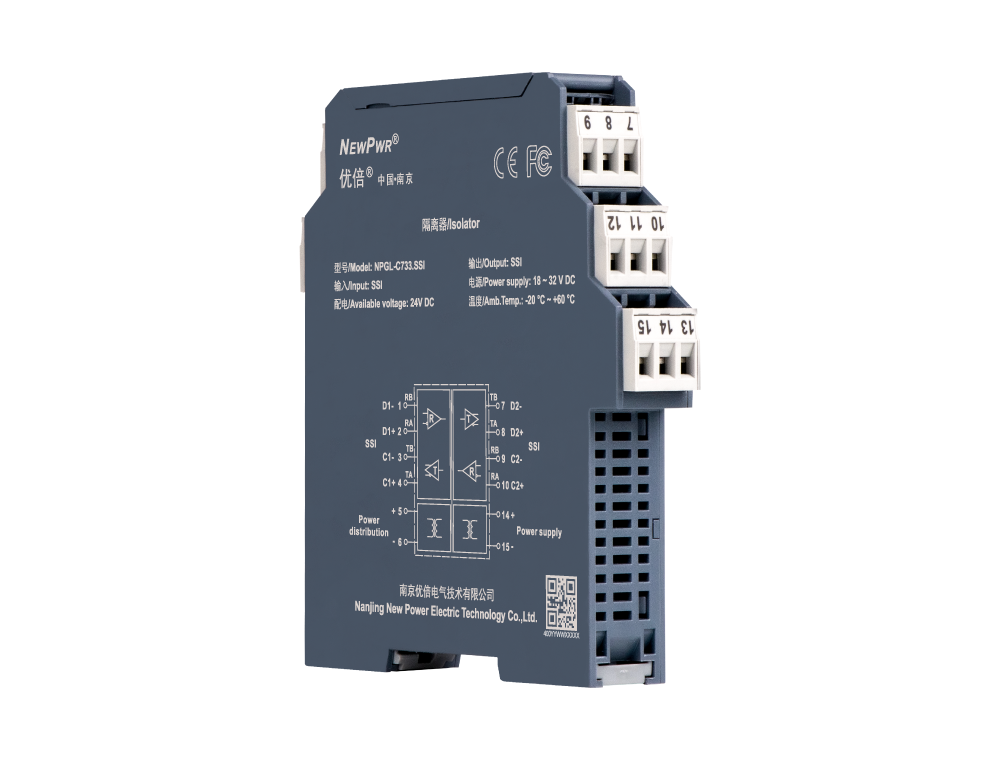

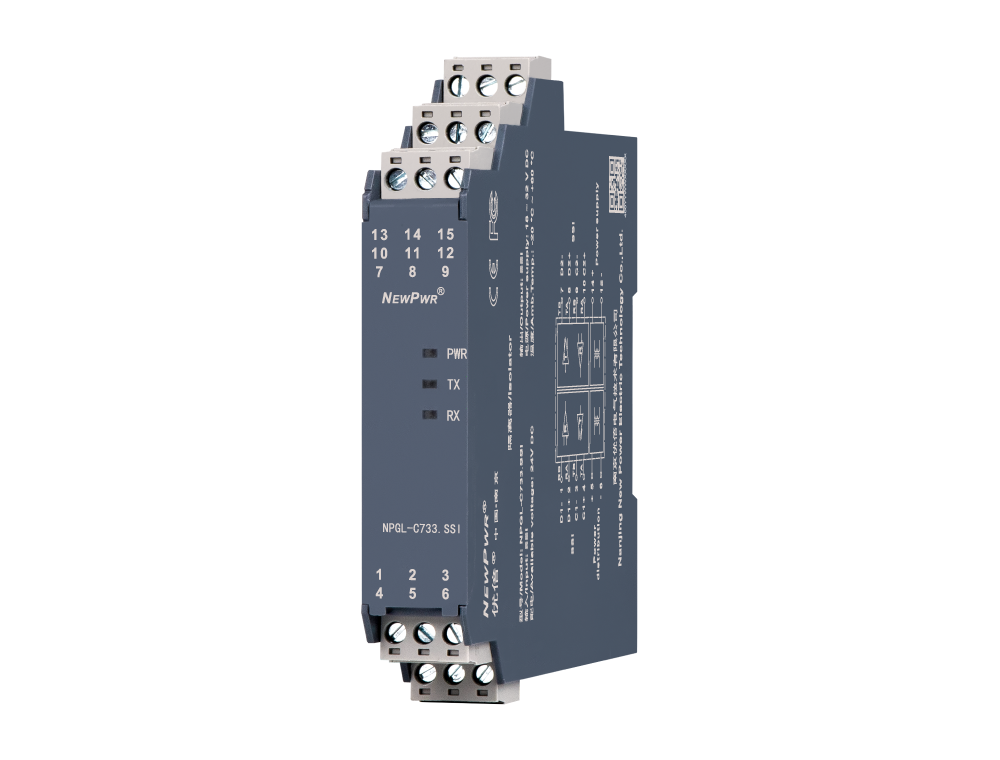

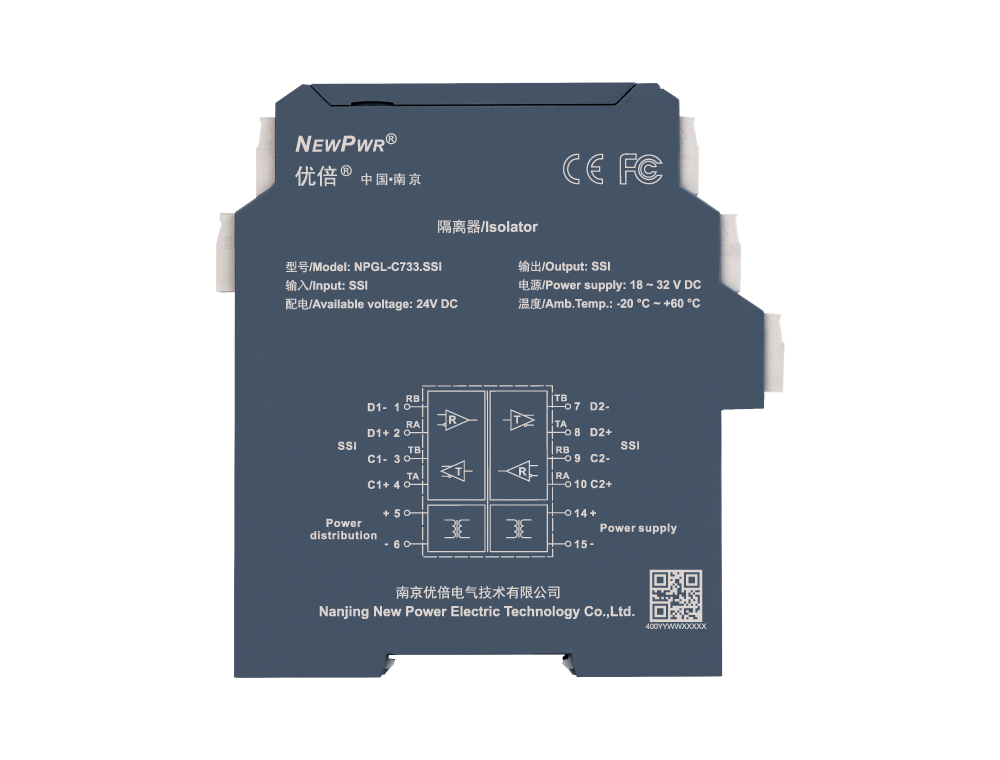

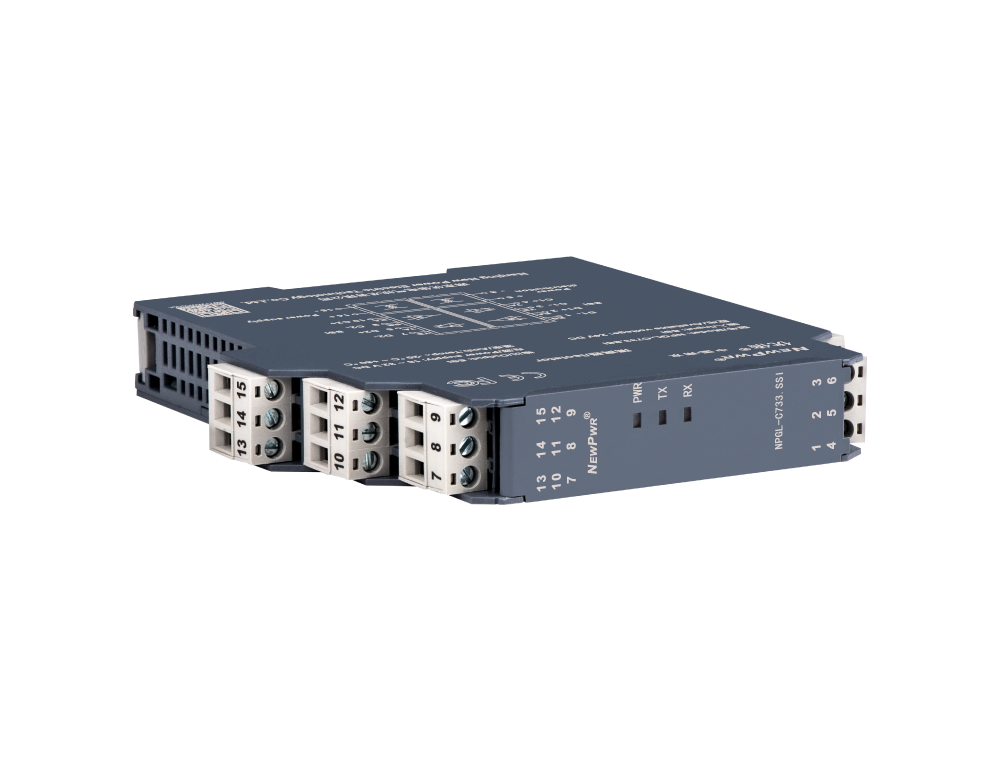

NPGL-C733.SSI

This isolator transfers the SSI digital signals and provides isolated power supply for field devices. The input, output, and power supply are galvanically isolated from each other.

Input signal

Output signal

Channels

Power Supply Mode

Power Distribution

Share
NPGL-C733.SSI

¡¾Core technology¡¿



¡¾Installation and disposal¡¿






Installation                                               Disposal




¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 32 V DC
Input
Input signal SSI
Distribution voltage 24V DC¡À10%£¬£¬ £¬£¬£¬£¬150mA
Output
Output signal SSI
Transfer characterisics
Transmission delay ¡Ü 1 ¦Ìs
Transmission rate ¡Ü 1000 kbps
General parameters
Power dissipation ¡Ü 5 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 1500V AC (Input /Output/Power supply)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
