NPFC-H11D

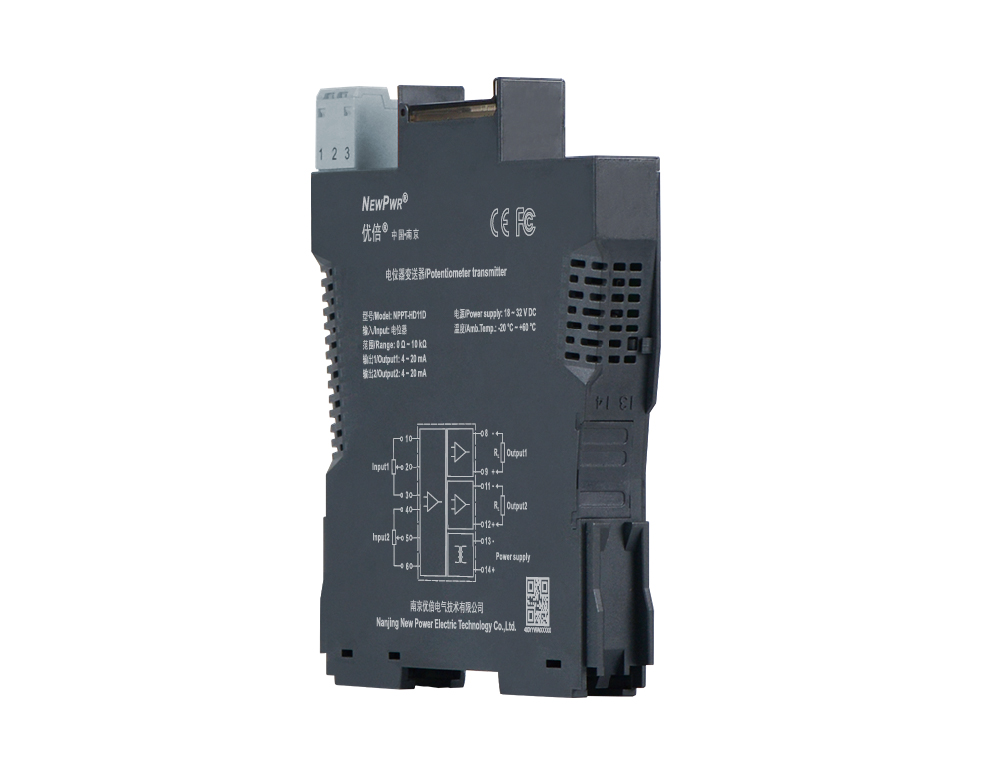

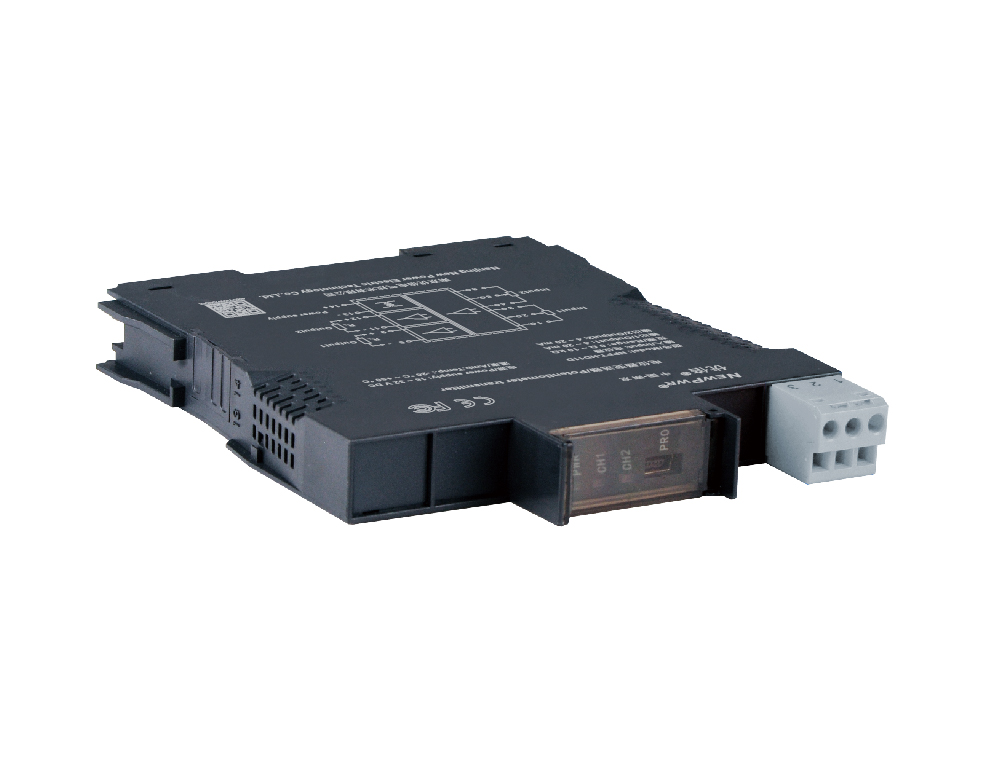

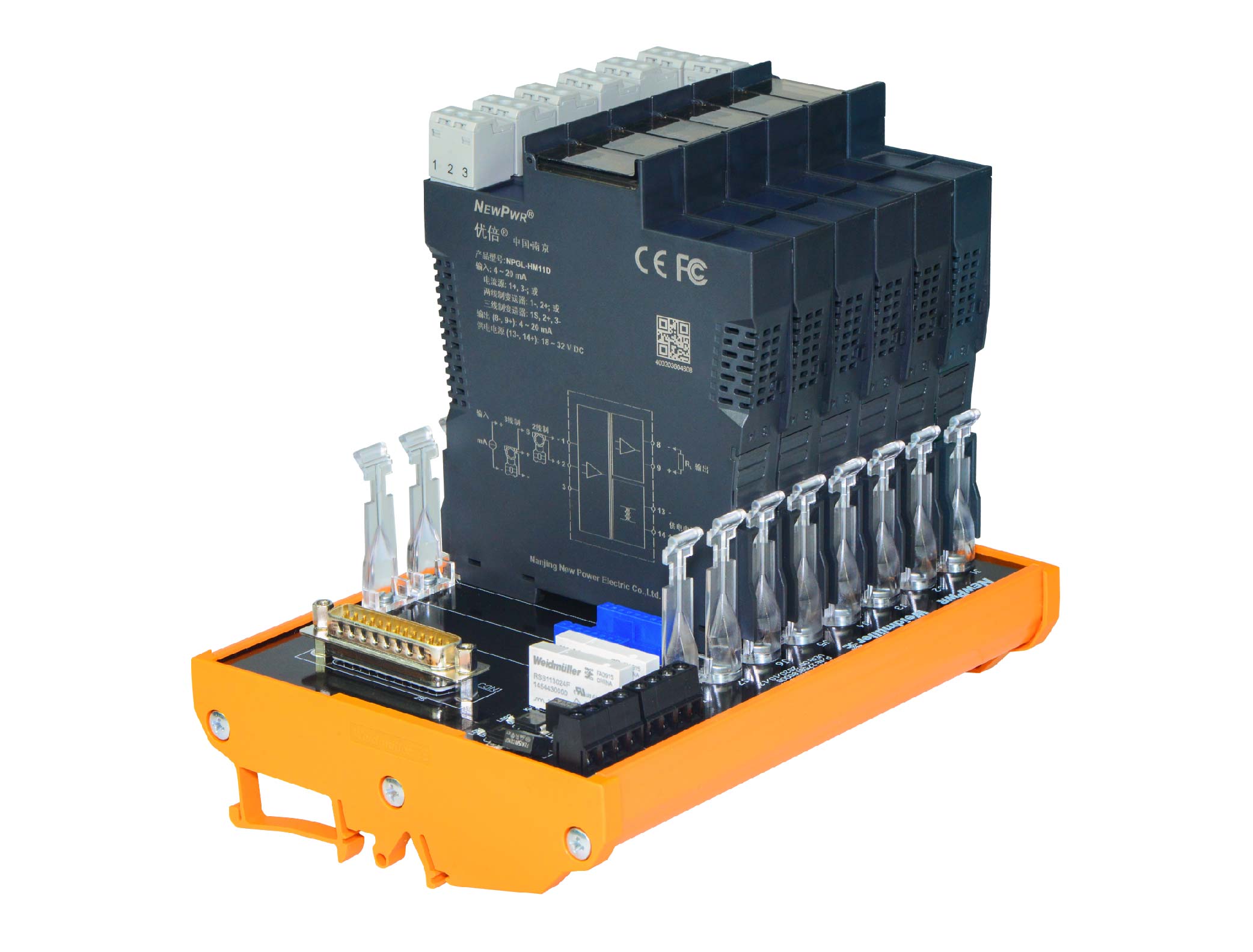

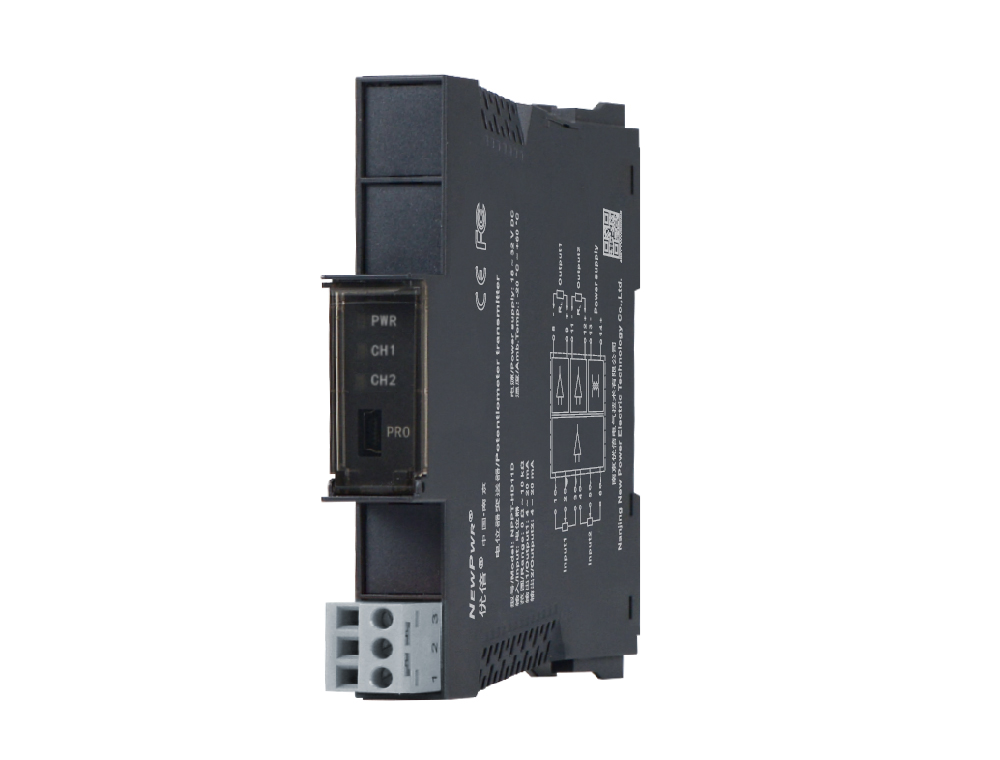

This frequency transmitter converts the frequency signals to 4~20mA signals. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.

Input signal

Output signal

Channels

Power Supply Mode

Power Distribution

Share
NPFC-H11D

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Apparatus installation                            Apparatus disposal







Backplan installation                                Backplan disposal





Supply
Power supply 18 ~ 32 V DC
Input
Input signal frequency input, Max. input voltage: 30V, Min. input amplitude: 2V, frequency range: 0 ~ 100kHz; PNP/NPN input, distribution voltage: 12V or 24V, current: ¡Ü 20mA, frequency range: 0 ~ 10kHz; NAMUR input, distribution voltage: approx.8.2V, short-circuit current: approx.8mA, frequency range: 0 ~ 10kHz
Output
Output signal 4 ~ 20 mA
Load resistance RL ¡Ü 500 ¦¸
Transfer characterisics
Accuracy ¡À 0.1 %F.S.
Temperature drift 1 ¦ÌA/¡æ
General parameters
Response time ¡Ü 500 ms
Power dissipation 1.8 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 1500 V AC (Input /Output); ¡Ý 500 V AC (Power supply /Output)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
State
Fault states Input signal state indicator (red), it is remain bright when input over-range. it is flicker when input breakage.
Mechanical specifications
Connection method Screw connection
Dimension 15.8mm (W) ¡Á 121.6mm (H) ¡Á 104.8mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
